IECSoft

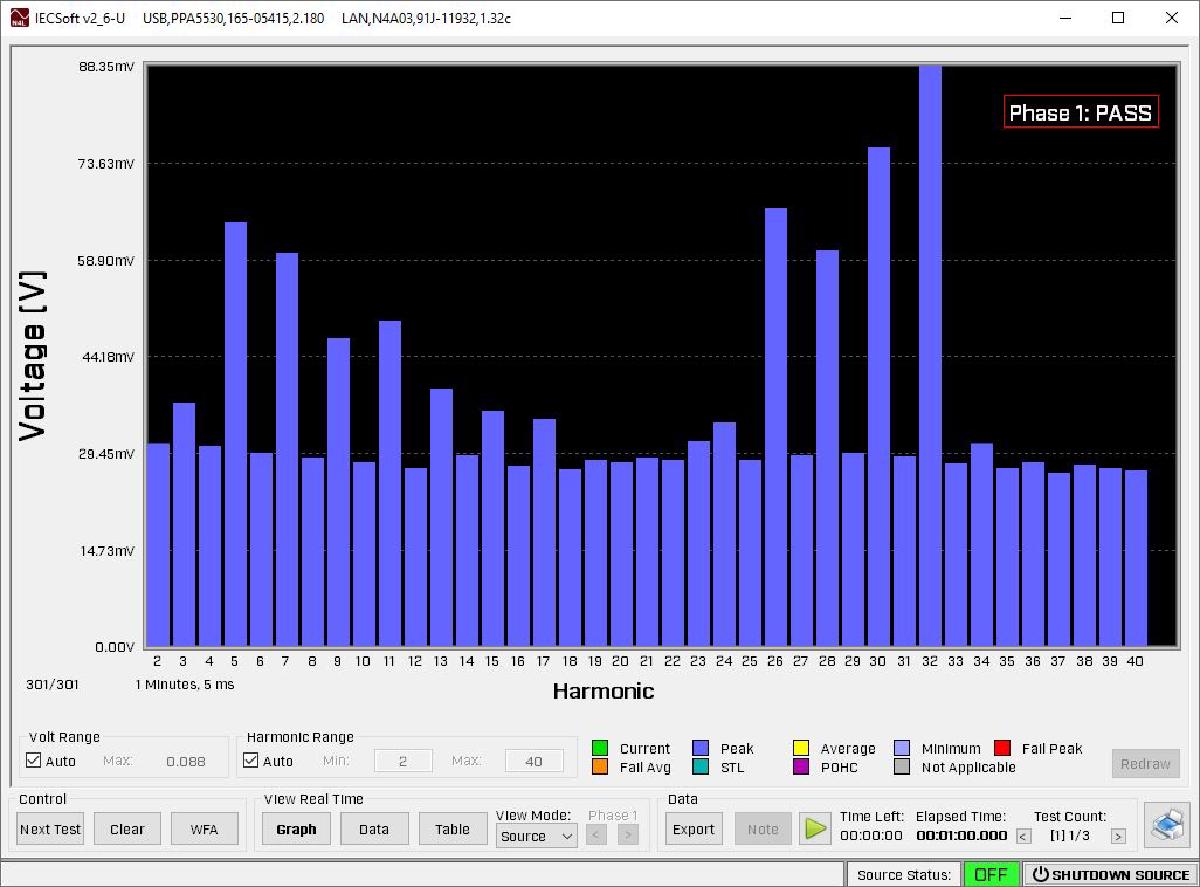

IECSoft is a complete software suite dedicated to IEC61000 EMC testing, IECSoft provides an intuitive user interface for the engineer which enables comprehensive analysis of results. The harmonics and flicker EMC test standards are complex and data acquisition and reporting software is often difficult to interpret, IECSoft utilises a colour coding notification system which is updated in “real time” to provide graphical feedback to the user of the current pass/fail parameters of the test device. This approach, coupled with a comprehensive report exporting function provides any EMC test lab with everything they need for compliant, fast, reliable and accurate compliance testing.

A complete IEC61000 test system consists of a PPA55x1, IMP Impedance Network and N4A AC Source. Each individual component of the test system can be purchased separately and added to an existing system.
