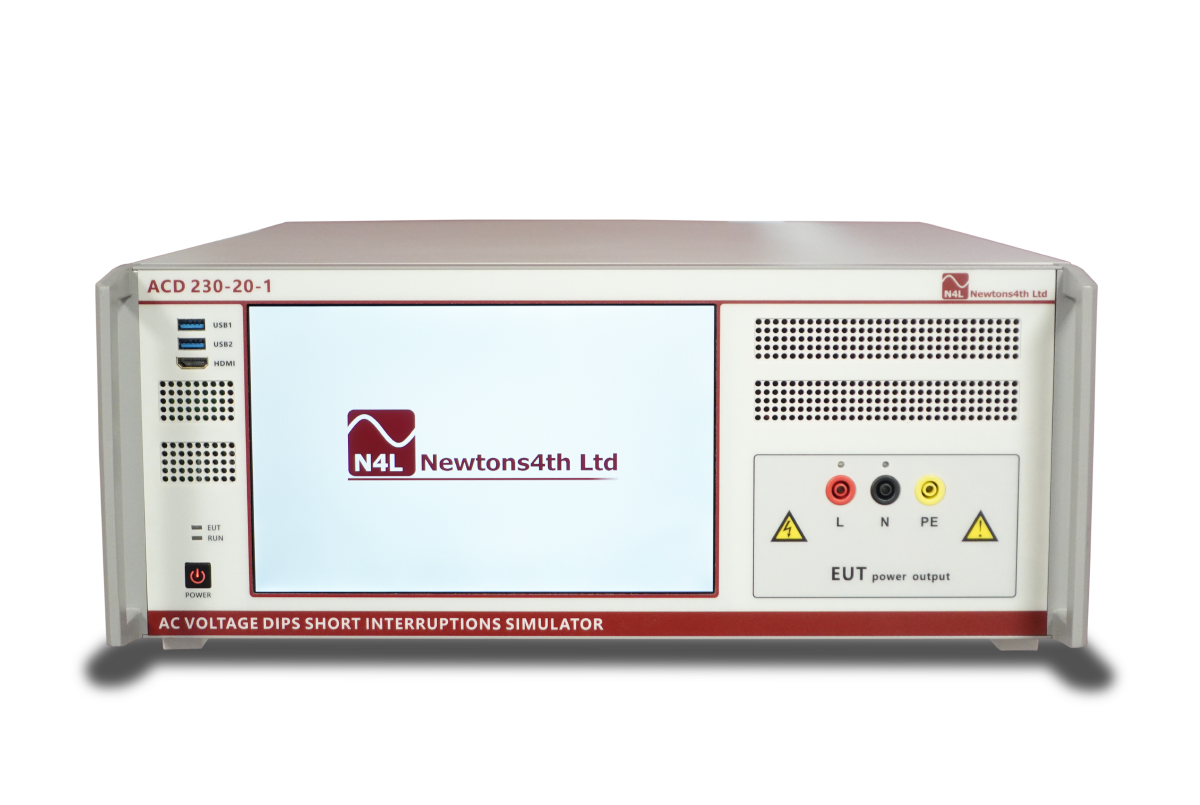

ACD-230-20-1
IEC Voltage Dip and Interrupts Simulator
The ACD230-20-1 is a free standing AC voltage DIP and Interruption Simulator that provides IEC61000-4-11 compliant testing functions from a suitable AC source. With complete test functionality and user interface provided in the ACD230-20-1 , complexity, uncertainty and risk associated with integration into an existing IEC test system is avoided. This approach enables users with an independent AC source to make IEC61000-4-11 tests without involving the dedicated IEC61000-3-2/3 harmonic system. Since IEC61000-4-11 is associated with EUT susceptibility to a controlled disturbance rather than a PASS/FAIL criteria, the ACD230-20-1 is supplied with dedicated PC software, that takes recovered test settings from the Simulator and guides a user in producing a test report.Key Features
- Standalone IEC61000-4-11 Simulator
- Full compliance with 1-5uS rise and fall times
- Full cycle(s), half cycles and subcycle events
- Touchscreen menu and test interface
- Internal memory and USB to PC file handling
- Dedicated PC software test report generation
Applications
- IEC61000-4-11 DIP and Interruption testing
