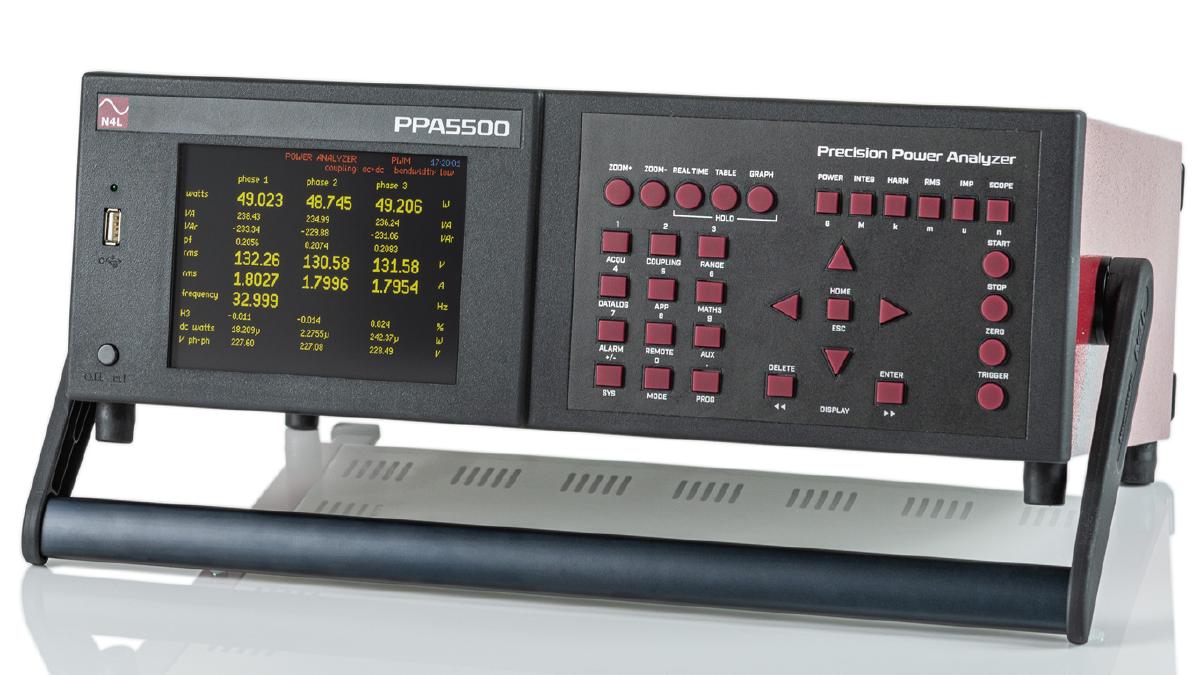

PPA5500-TE [Gen3]
The Worlds Most Accurate Power Transformer Analyzer*
The PPA5500-TE is a high accuracy transformer power analyzer compliant to relevant testing within IEC60076-1, dedicated to the transformer industry. The PPA5500-TE builds upon years of knowledge and experience within the transformer industry bringing a power analyzer with exceptional performance. Transformer analysis requires very specific performance requirements including exceptional phase angle accuracy and repeatability. The PPA5500-TE provides market leading low power factor analysis, supplied with UKAS ISO17025 certification.Key Features
- Full rack wide 3U high
- 0.02% nominal power accuracy
- 3 milli degree phase accuracy
- ISO17025 accredited Low Power Factor calibration
Applications
- Transformer Power and Losses
- IEC60076-1 compliant

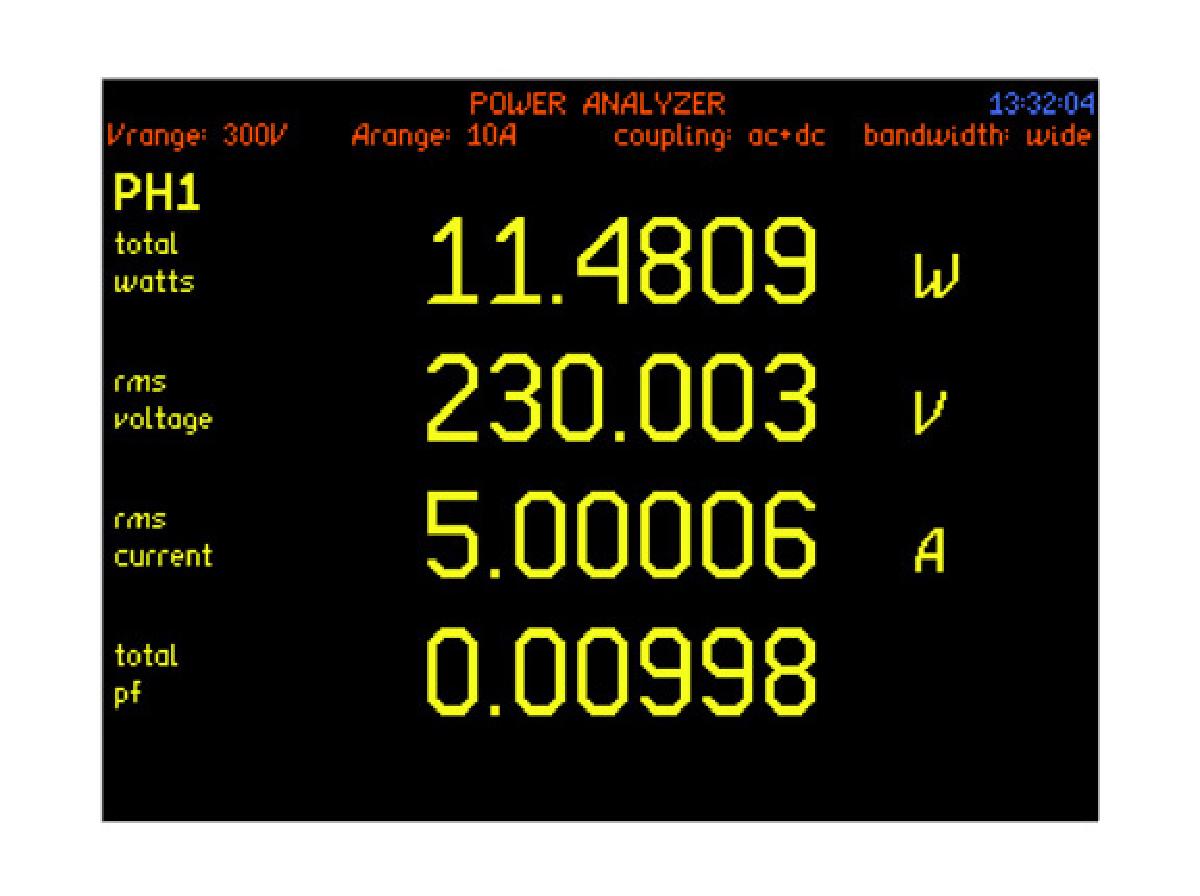

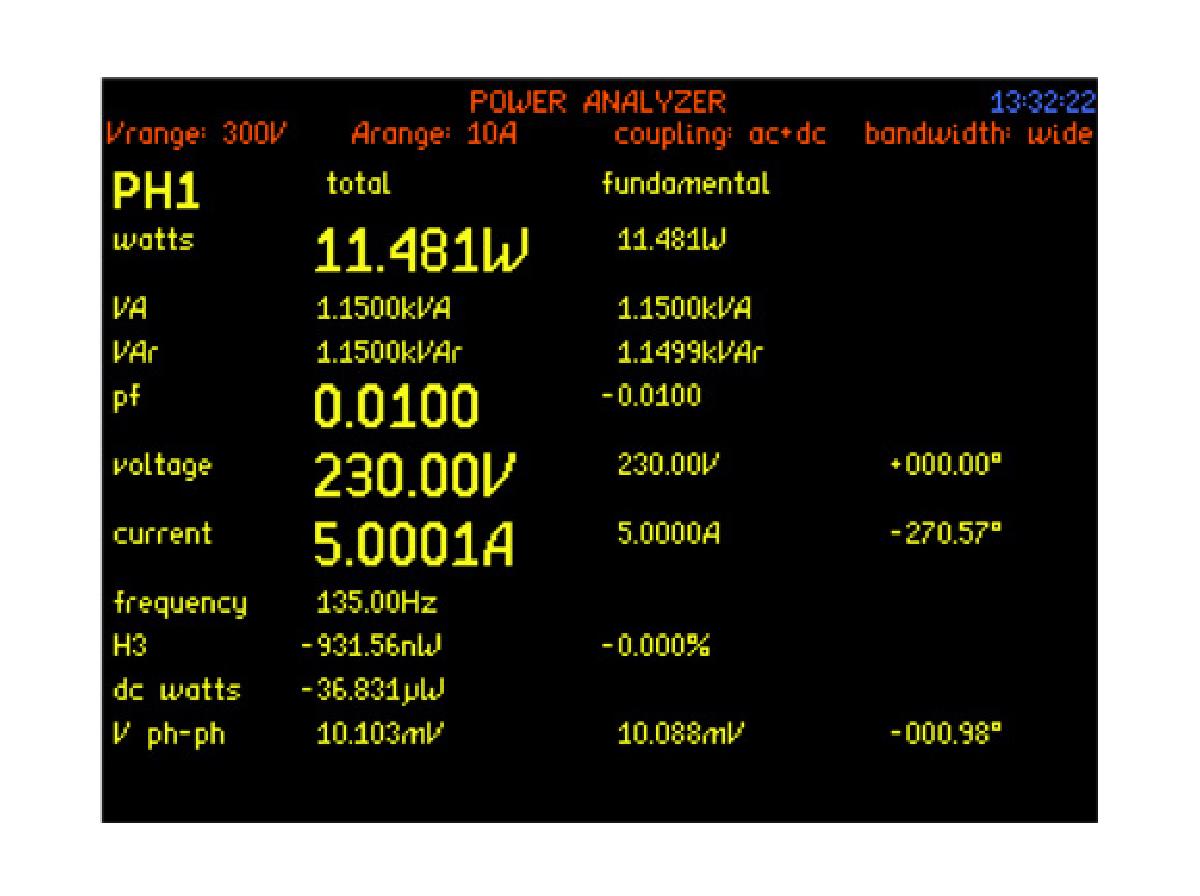

- Low Power Factor Magnetics design and test
- Component loss analysis
