PPA500 [Gen2]
1, 2 or 3 Phase DC to 500kHz High Performance Power Analyzers
Primarily aimed toward applications in production, test, and education, the PPA500 power analyzer provides levels of functionality and performance that are usually found only on higher cost products. This becomes increasingly important in more general power measurement, because power conversion techniques previously associated only with specialist power environments, are becoming common to even the most basic power devices. So, while the PPA500 represents the starting point in the N4L power analyzer range, it offers the ability to maintain levels of accuracy and stability in the measurement of modern distorted and noisy power applications, that conventional and well-established measurement instruments cannot achieve. Presented in a compact 2U half rack design and 1, 2 or 3 phase direct input versions, this easy to use and highly versatile product is the ideal instrument to replace conventional power measurement products.Key Features
- Half rack wide 2U high
- DC and 10mHz to 500kHz
- 0.1% nominal power accuracy
- 10 milli degree phase accuracy

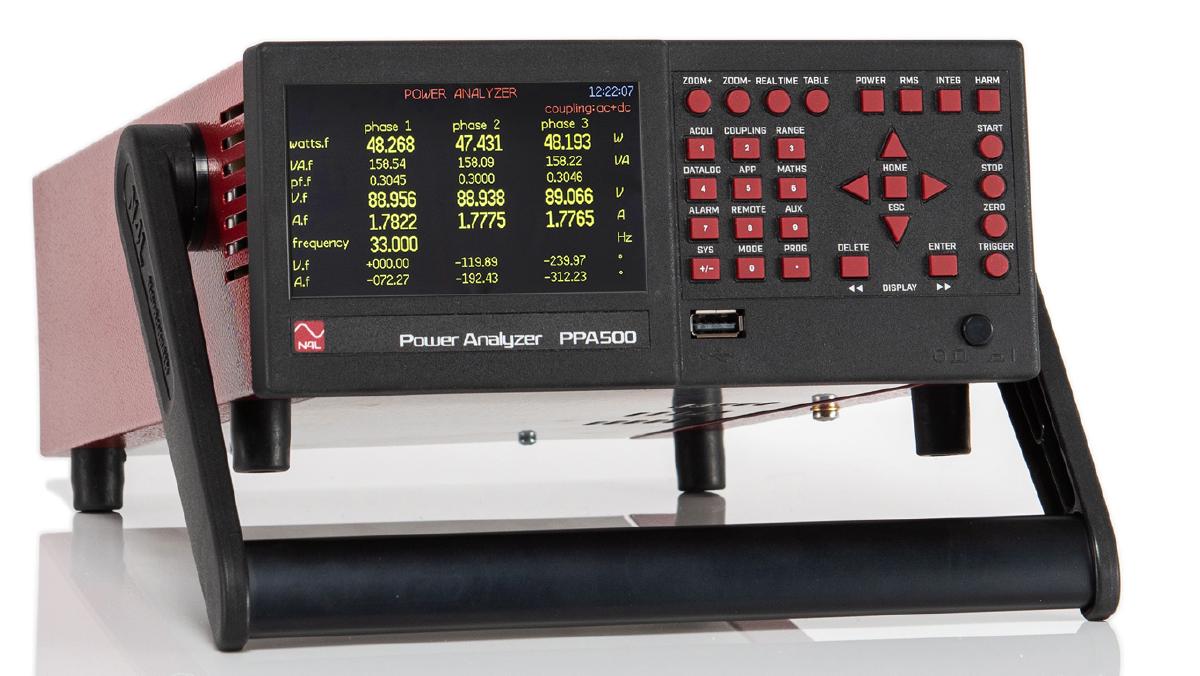

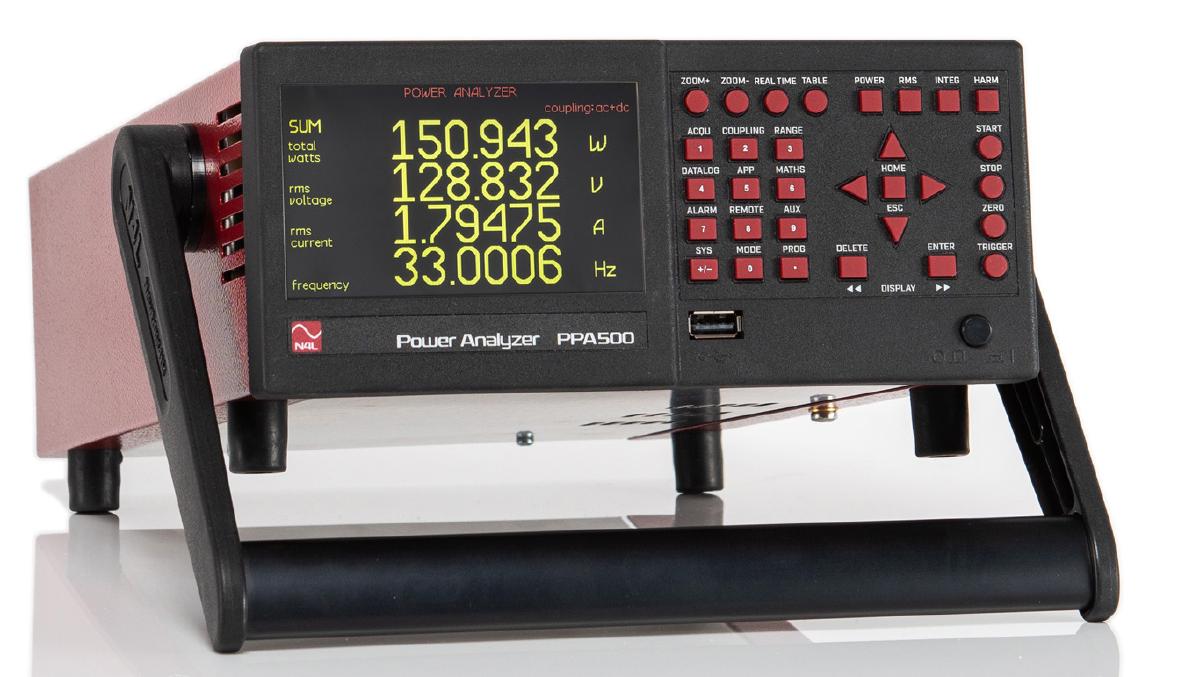

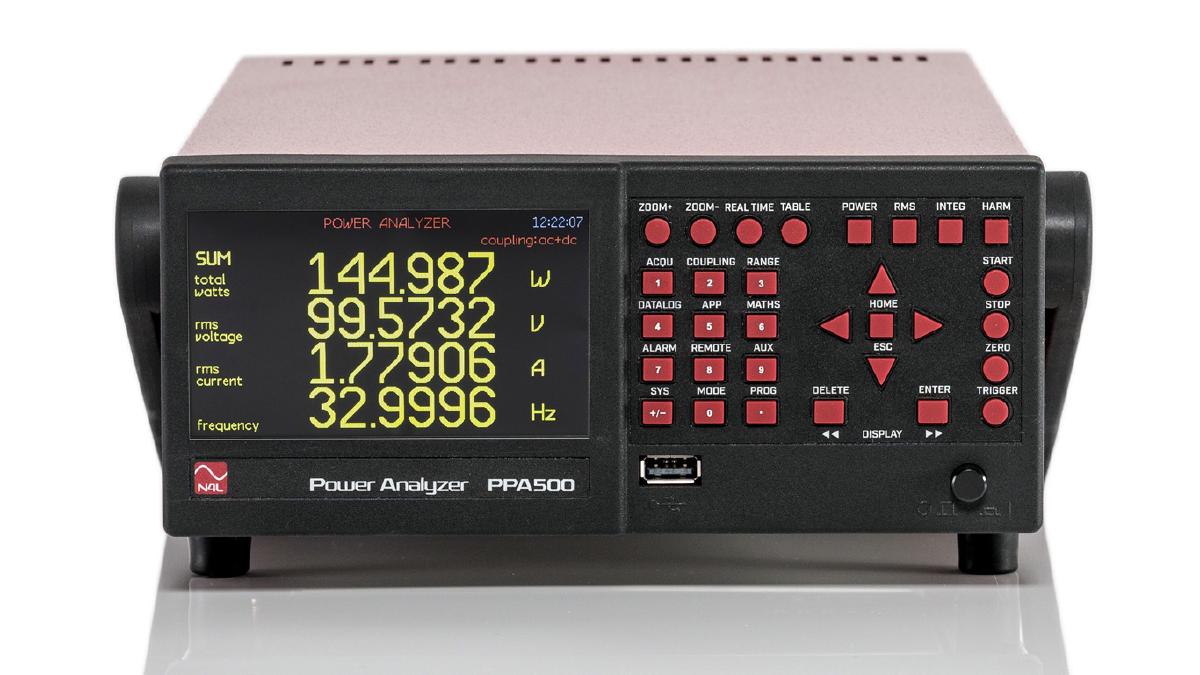

- Selectable zoom for large 5/6 digit on 4 functions
Applications
- General purpose power measurement
- Production test
- Standby power test
