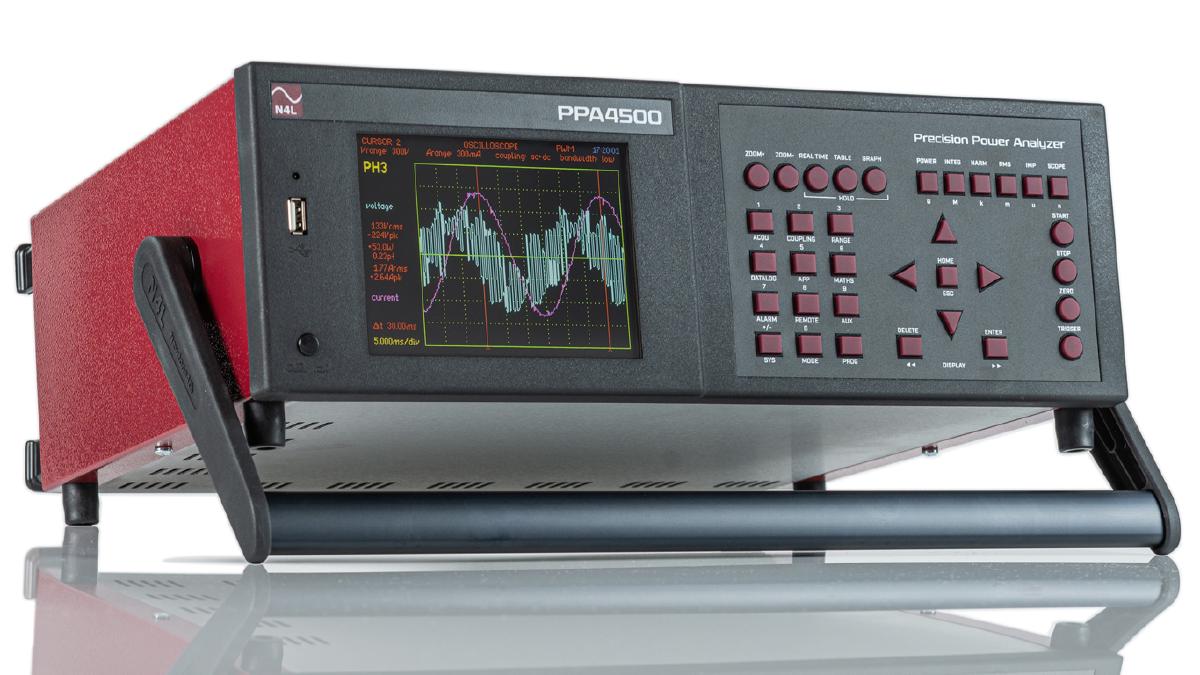

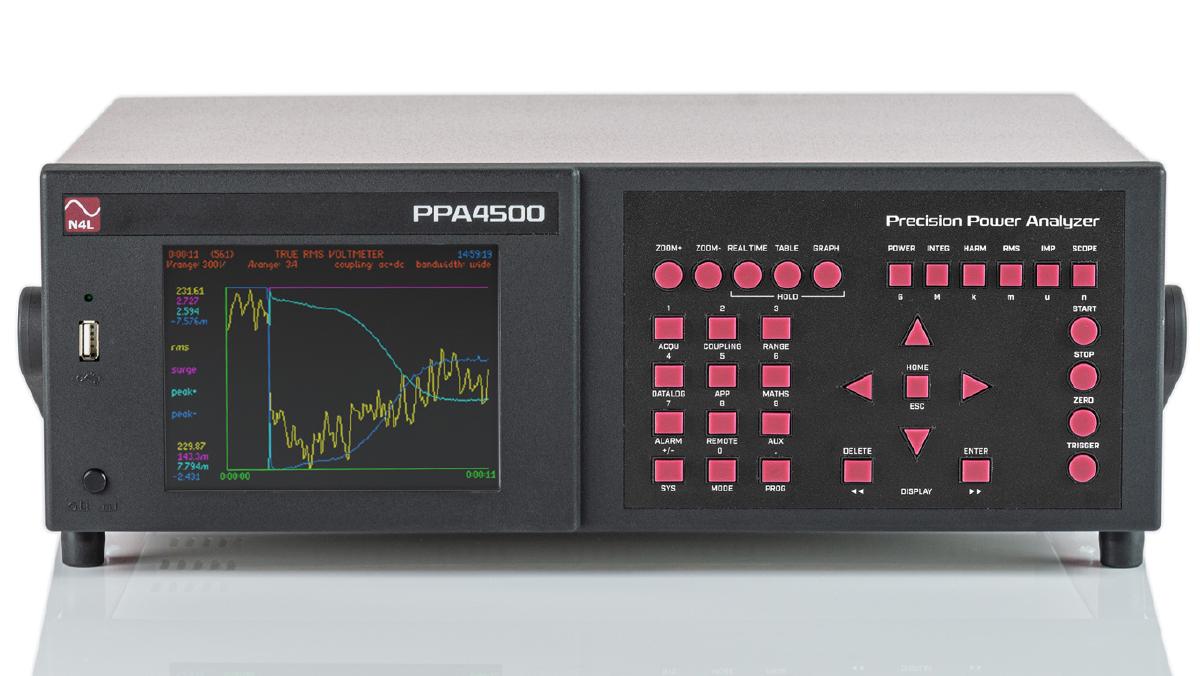

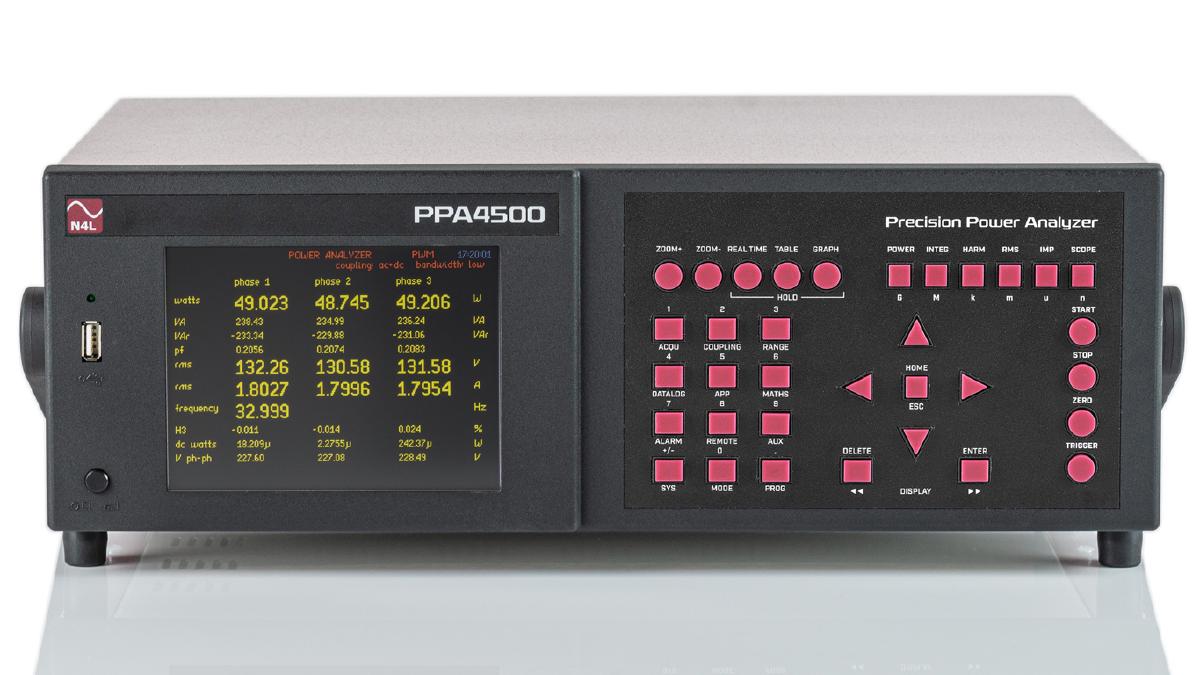

PPA4500 [Gen3]
1, 2 or 3 Phase DC to 2MHz Precision Power Analyzers
With power conversion research, development and tests in mind, including the increasing demand for variable speed invertor/motor applications, the PPA4500 power analyzer offers market leading levels of performance. Using analogue, digital and sample processing techniques that are unique to N4L, the PPA4500 achieves wideband measurement accuracy from DC to 2MHz, with levels of stability, accuracy and speed unmatched by competing products. Used as a free-standing measurement instrument or combined with our PPALoG PC software available to all PPA users at no additional cost, the PPA4500 provides an ideal power analysis solution for anyone in demanding power applications.Key Features
- Full rack wide 3U high
- DC and 10mHz to 2MHz
- 0.04% nominal power accuracy
- 5 milli degree phase accuracy
- Higher processing power
Applications
- Research, Development, and Test
- Motor / Inverters
- System integrators
- Renewable energy
