PPA3500
3,4,5,6(7) Phase DC to 1MHz High Performance Power Analyzers

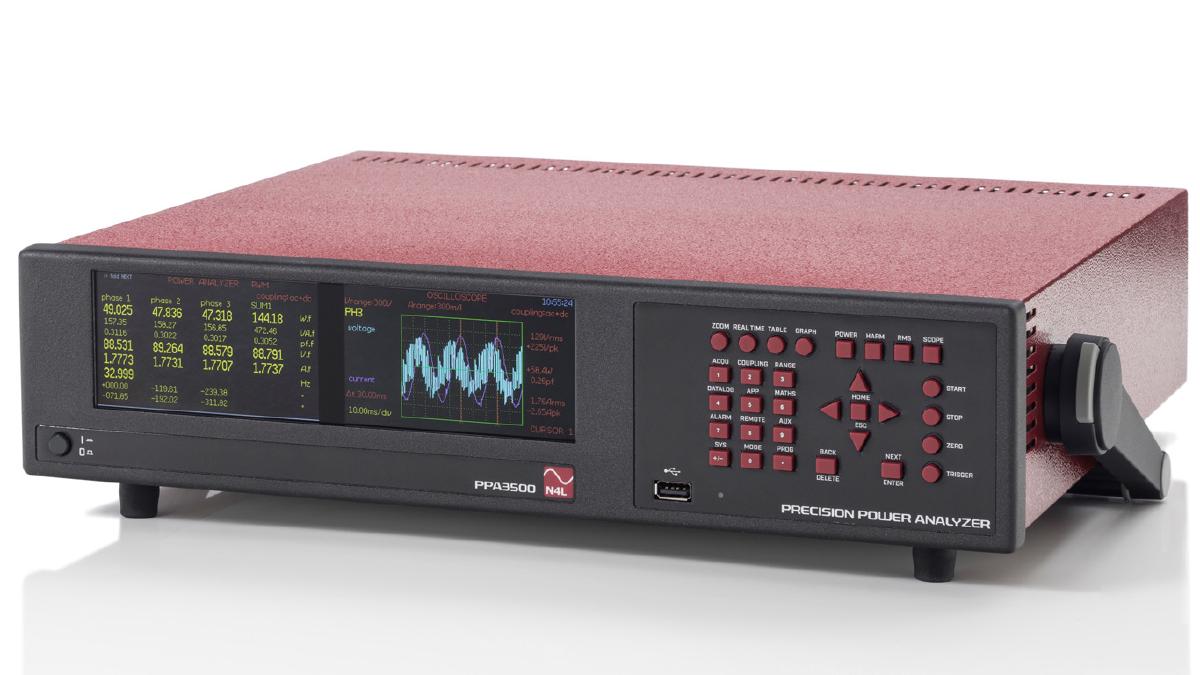

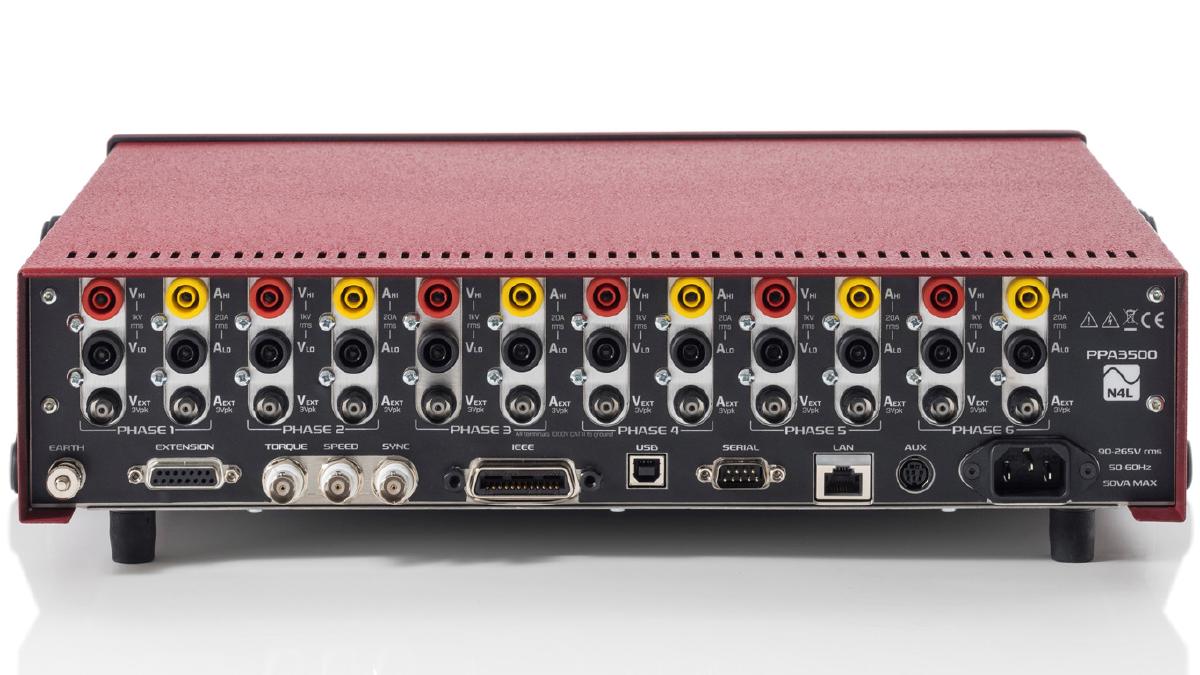

Targeted toward multi-stage power conversion applications, the PPA3500 power analyzer offers 3,4,5 or 6 phase inputs and a computed 7th phase, that derives 3- wattmeter results from a 2-wattmeter connection, plus torque and speed inputs for mechanical power. With two widescreen format graphic displays, users can look at separate data groups, or simultaneous data and scope images of one group. Ideal for bench use or test system integration, our unique design provides a level of functionality and performance in a 2U high 19” rack size, unmatched by other products.Key Features
- Full rack wide 2U high
- DC and 10mHz to 1MHz
- 0.06% nominal power accuracy
- 5 milli degree phase accuracy

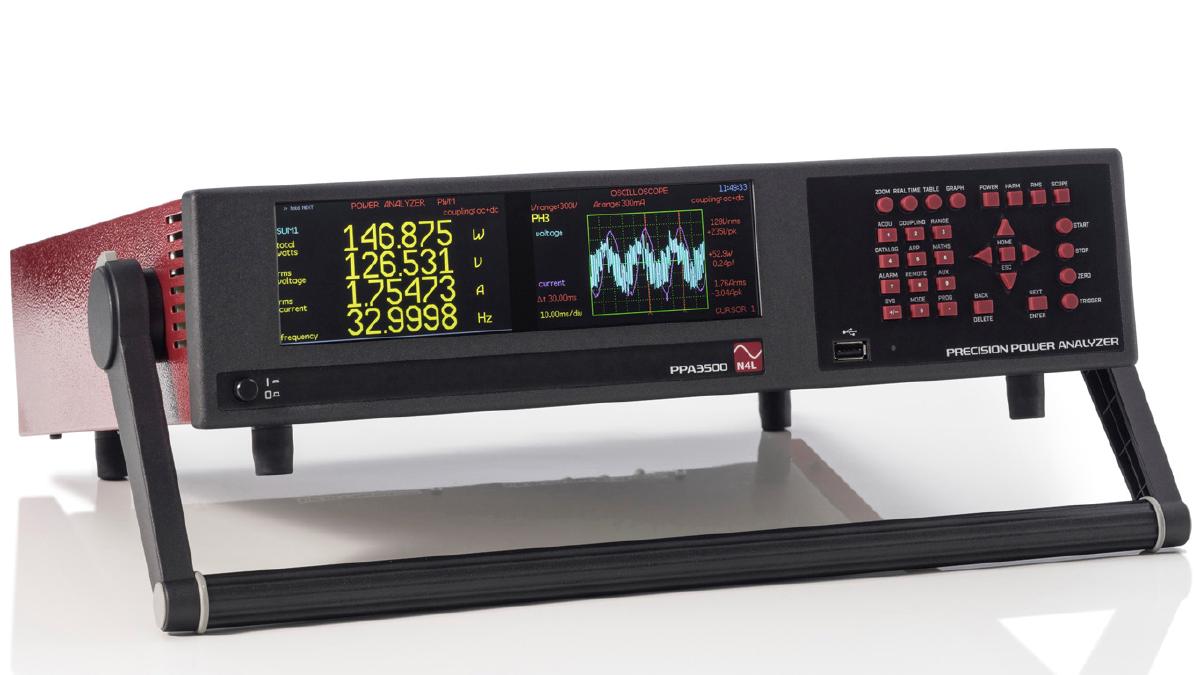

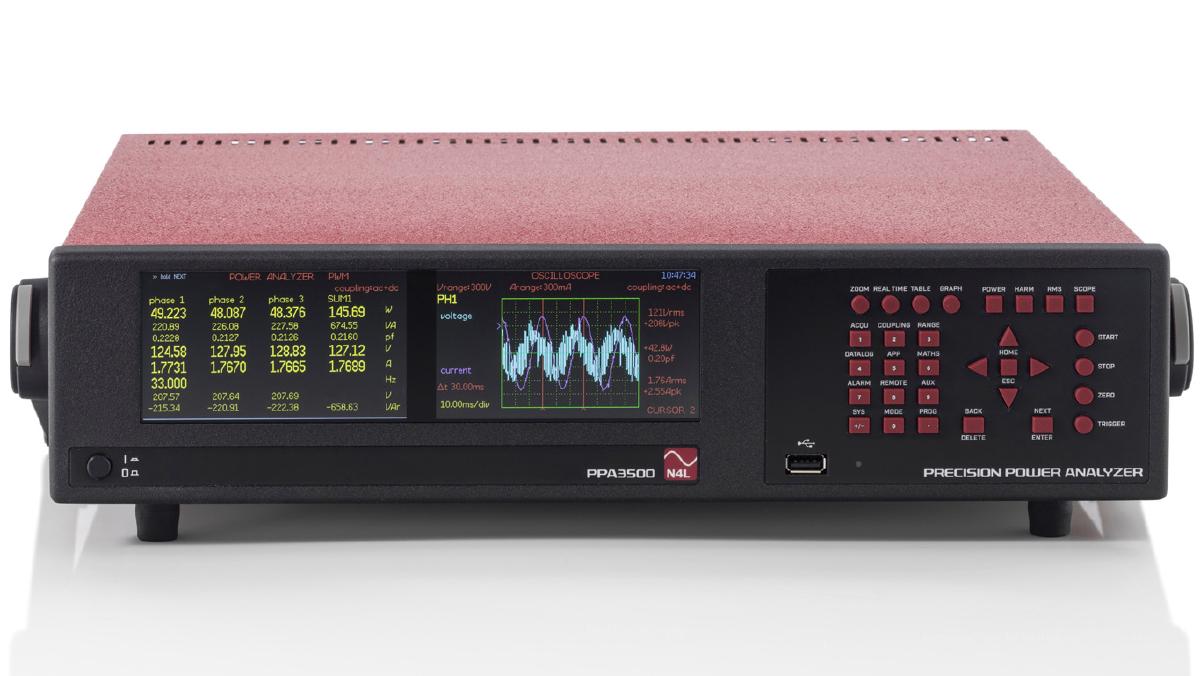

- Dual display
- Torque & Speed inputs
Applications
- Development and Test
- Motor / Inverters
- System integrators
- Renewable energy
