PPA1500 [Gen2]
1, 2 or 3 Phase DC to 1MHz High Performance Power Analyzers

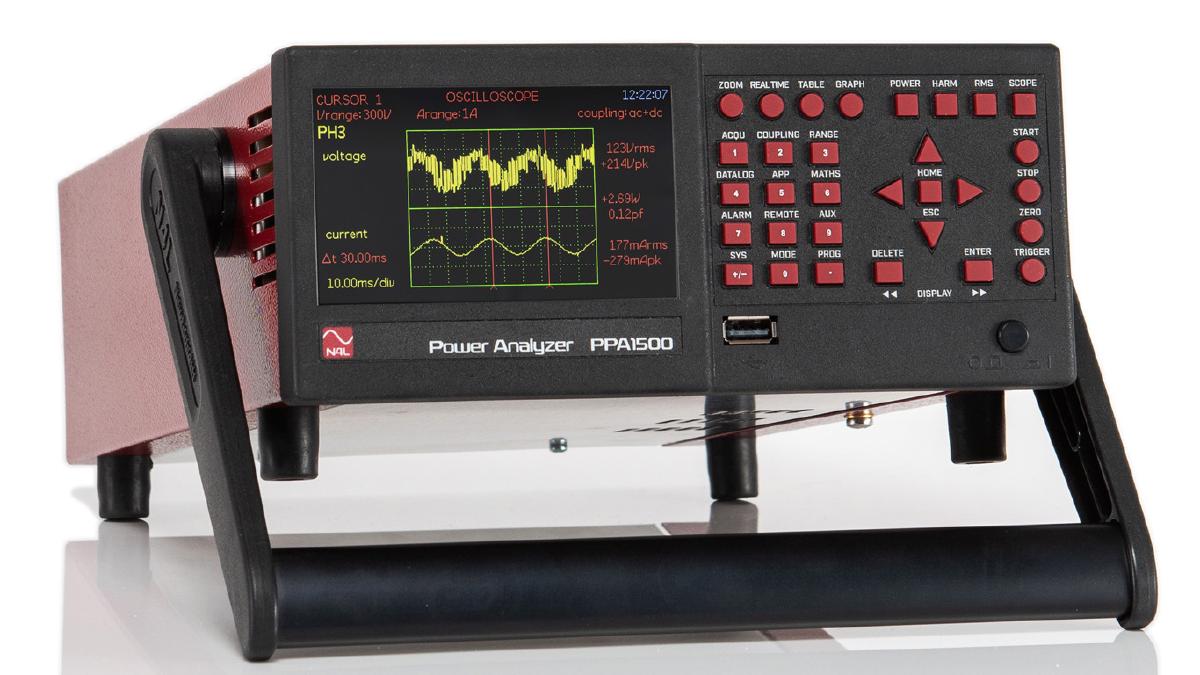

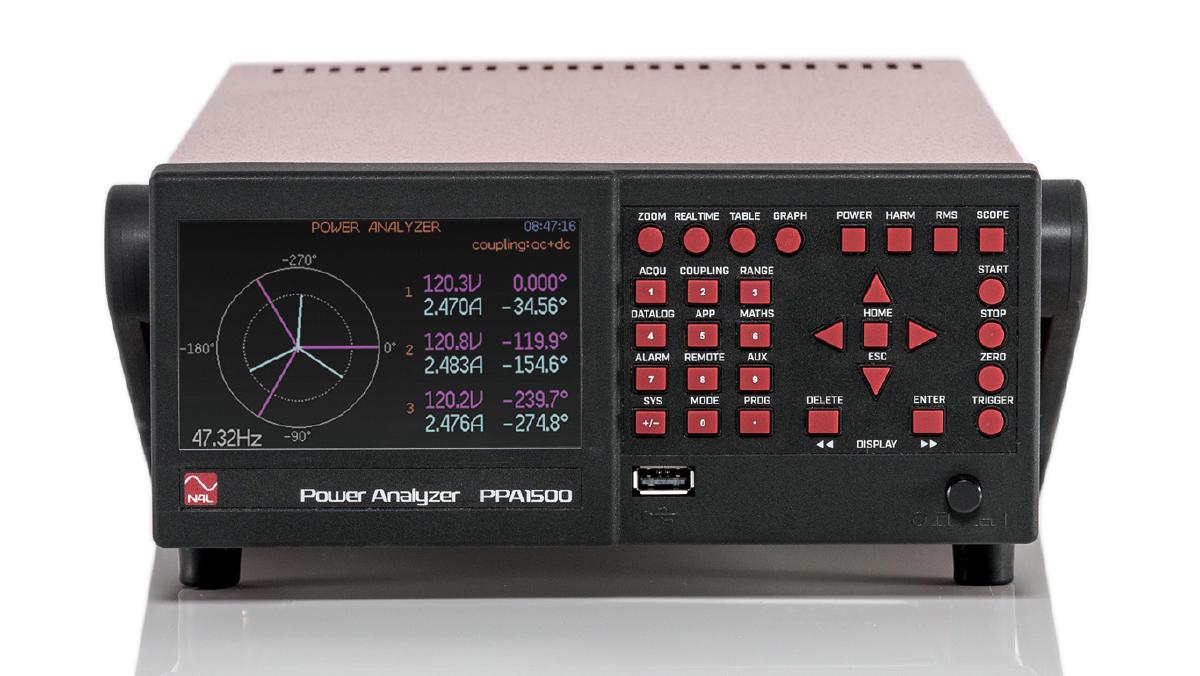

Sharing its core design with the PPA500, the PPA1500 power analyzer offers a wider frequency range, plus graphic display functions, for users who seek more than the numbers. Real Time log plots that present scrolling results, including averaged or accumulated integrator measurements, harmonic bar graphs with peak detect, vector display and flexible SCOPE mode, with simultaneous voltage and current waveforms on all inputs. Combine measurements and numbers, with user-controlled cursors that present real time measurements while viewing voltage and current the waveforms. An ideal addition to any power electronics lab, the PPA1500, combines measurement accuracy and presentation options not matched by any other product at its price point.Key Features
- Half rack wide 2U high
- DC and 10mHz to 1MHz
- 0.1% nominal power accuracy
- 10 milli degree phase accuracy

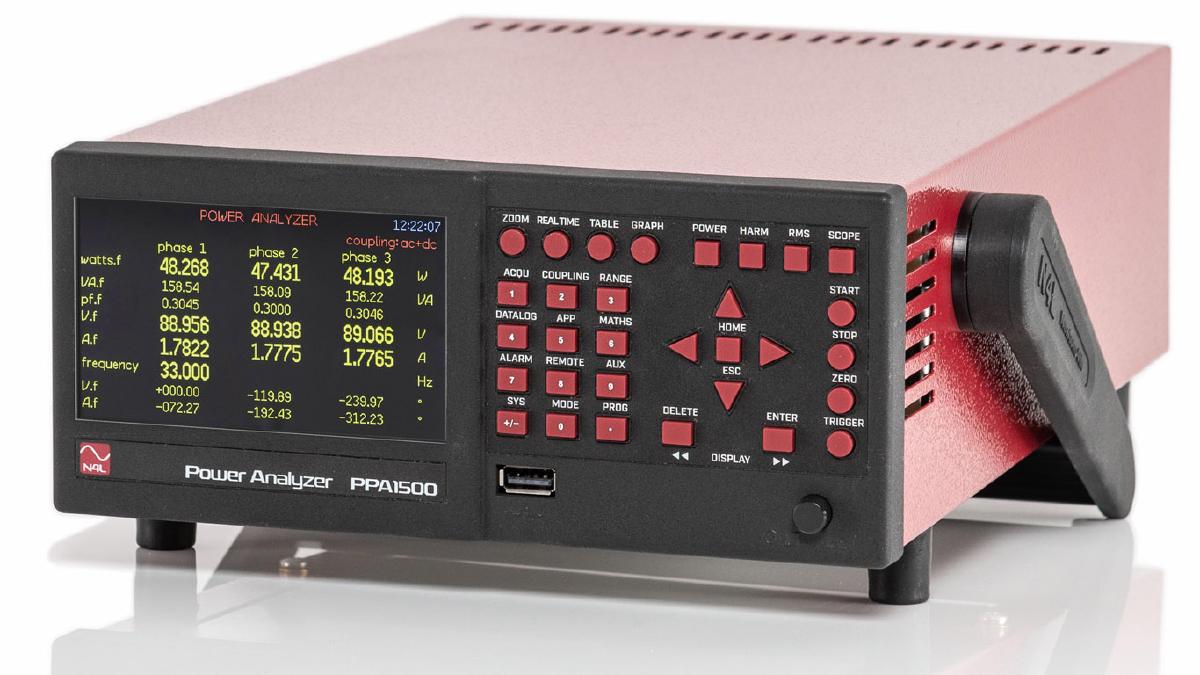

- Digital plus Graphic display: Scope, Graph, Vector
Applications
- Academics
- Development and test
- Ultrasonics
- Lighting ballast
- Power supply testing
