Power Analyzers

Power Analyzers

Newtons4th PPA1500 front panel

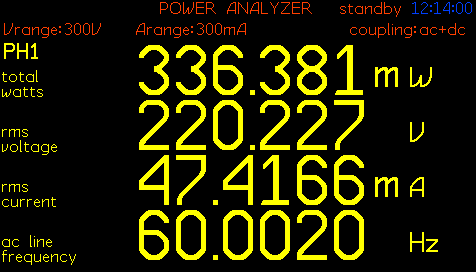

PPA1500 Power Analyzer zoomed realtime display show large, high precision measurements.

Measurement Modes

Power Analyzer

Power Integrator

Harmonic Analyzer

True RMS Voltmeter

Impedance Meter

Oscilloscope

Power Analyzer Range

Learn about the range

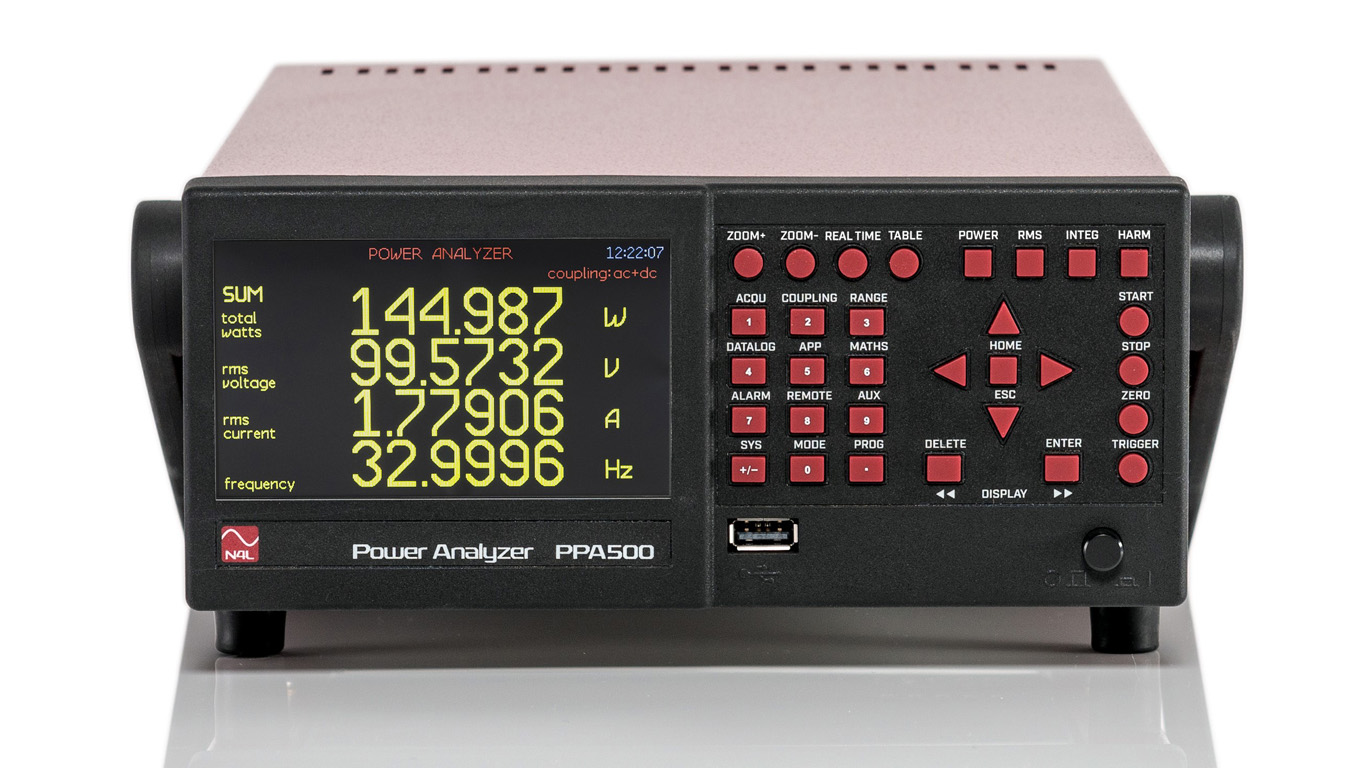

Newtons4th PPA530 show numerical realtime values for a three phase test setup.

PPA500 – General Purpose Power Measurement

General purpose power measurement Production test Standby power test

PPA500 – General Purpose Power Measurement

PPA1530 with vector mode displaying the current and voltage measurements on a three phase system, while simultaniously displaying the numerical readings including phase.

PPA1500 – Academics, Development and Test

Academics Development and test Lighting ballast Power supply testing

PPA1500 – Academics, Development and Test

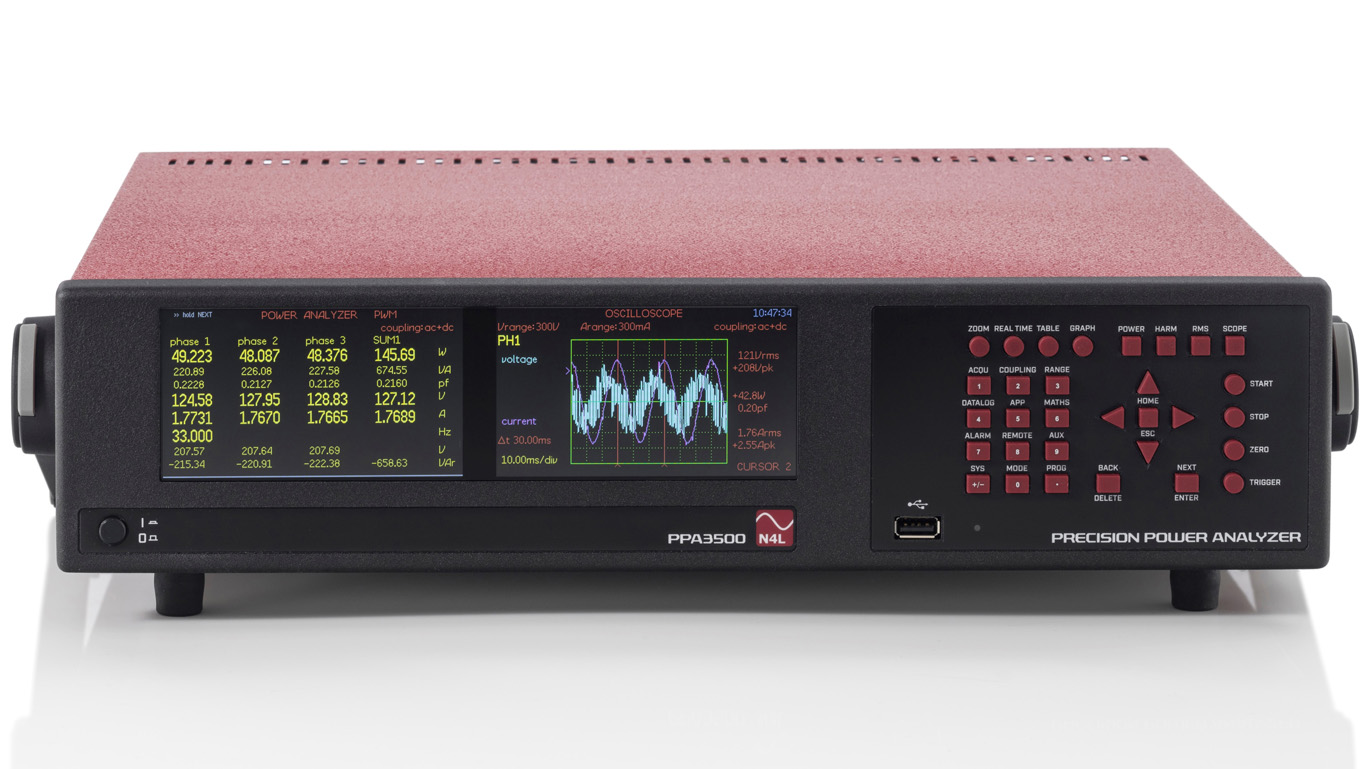

Six-phase PPA3560 power analyser showing realtime numerical display of power measuremnt and oscilloscope functionality for voltage and current on the dual display front panel.

PPA3500 – Motor/Inverter Analysis, Renewable Energy

Motor / Inverters System integrators Electric vehicle test Renewable energy

PPA3500 – Motor/Inverter Analysis, Renewable Energy

PPA4530 front panel with the colour LCD displaying realtime measruements that can be selected by the user.

PPA4500 – Bench R+D, Motor/Inverter Test

Bench R&D Motor / Inverters

PPA4500 – Bench R+D, Motor/Inverter Test

PPA5530 three phase precision power analyzer running is RMS mode displaying logged measurements as a time series plot.

PPA5500 – R+D, Power Transformer, IEC61000

Bench R&D Motor / Inverters Power transformer test IEC61000-3-2/3 Harmonics and Flicker

PPA5500 – R+D, Power Transformer, IEC61000

PPA5530 three phase power analyzer showing the real time numerical display mode.

PPA5500-TE - Transformer Edition Power Analyzer

Transformer Testing

PPA5500-TE - Transformer Edition Power Analyzer

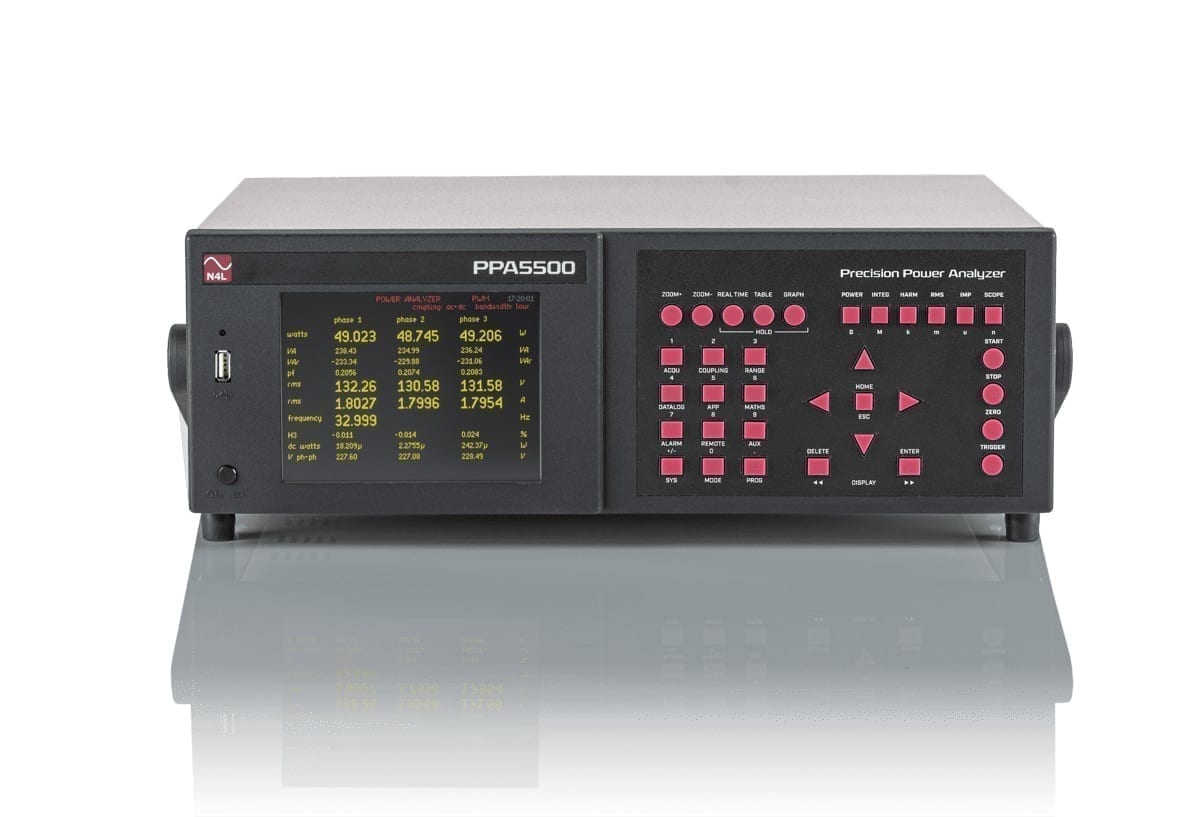

PPA5500 precision power analyzer front panel.

PPA55x1 - IEC61000 Harmonics and Flicker Analyzer

IEC61000-3-2/3 Harmonics and Flicker

PPA55x1 - IEC61000 Harmonics and Flicker Analyzer

Key Feature Comparison

PPA500	PPA1500	PPA3500	PPA4500	PPA5500
Basic Accuracy
0.05% V, A Rdg Error	0.05% V, A Rdg Error	0.04% V, A Rdg Error	0.03% V, A Rdg Error	0.01% V, A Rdg Error
Phase Options
1~3	1~3	1~6	1~3	1~3
