LCR Active Head
Impedance Analysis for the PSM1700 or PSM1735

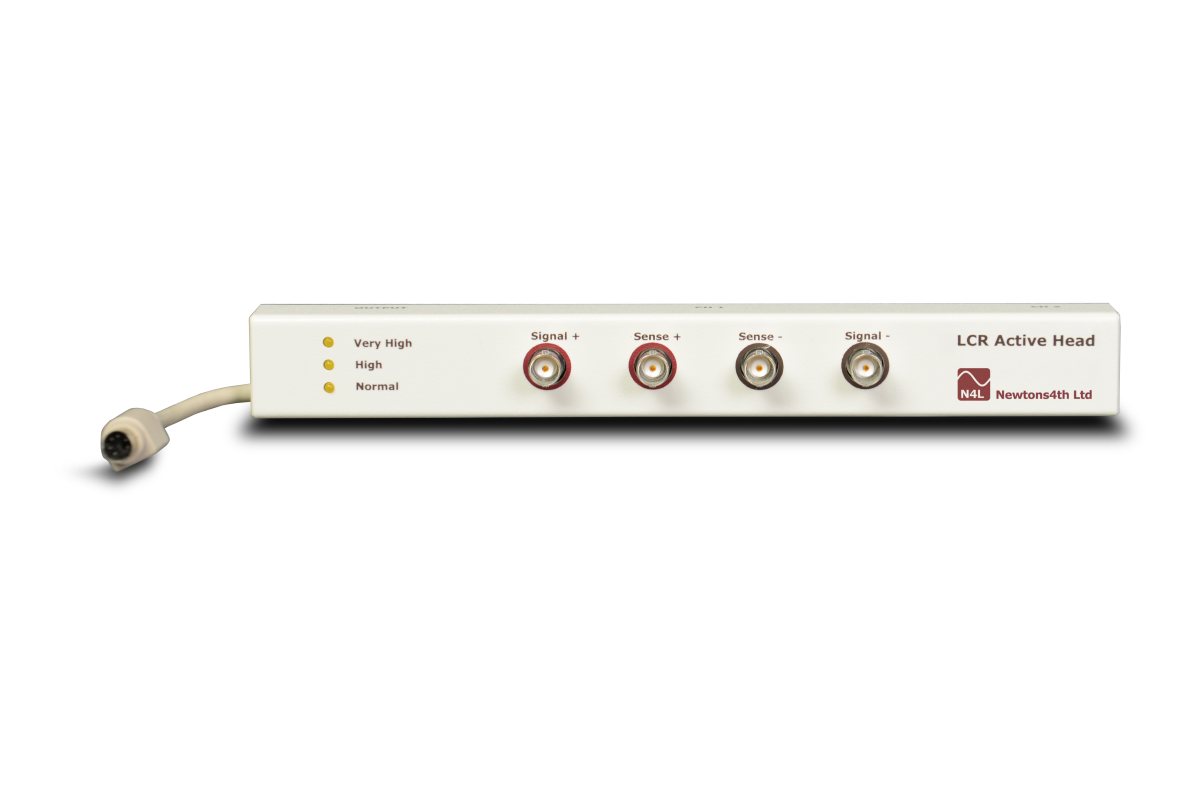

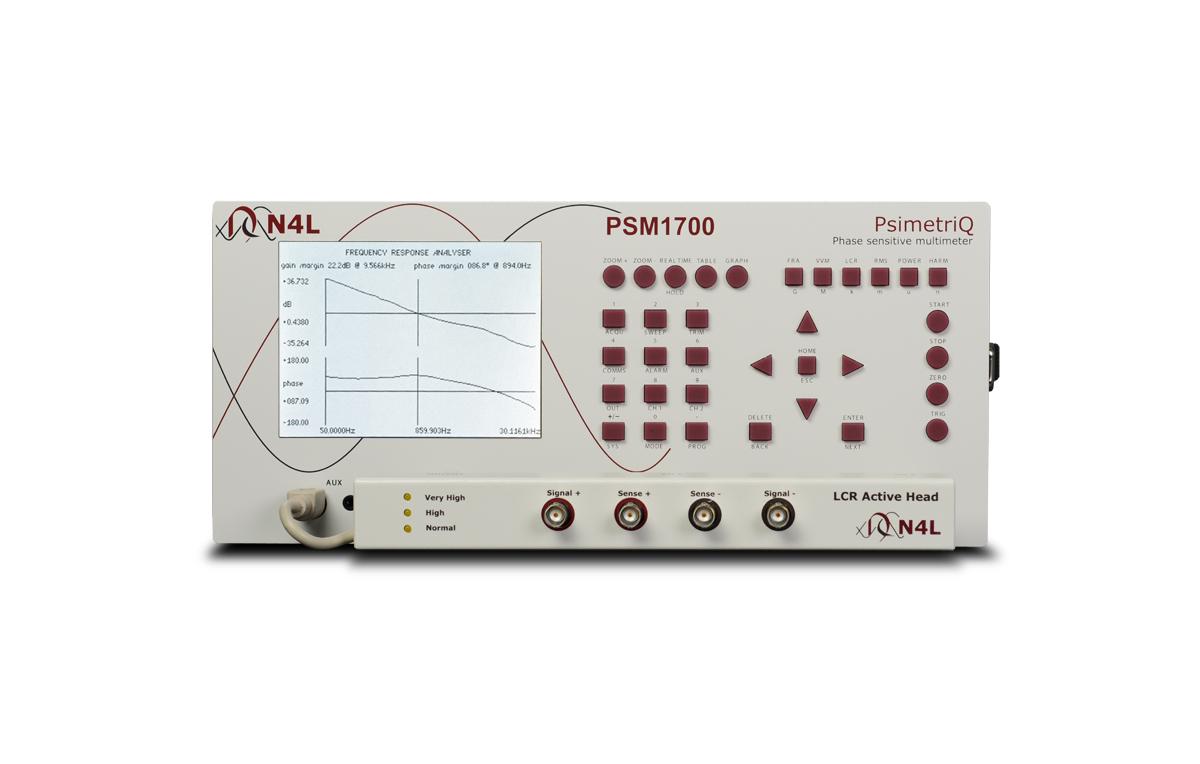

The LCR Active Head is a signal conversion accessory that clips onto the front of a PSM1700 or PSM1735 Frequency Response Analyzer to give LCR measurement functions. Active buffers minimise stray effects and isolate the load of the instrument inputs from the measurement, plus separate the generator from the measurement circuits, to achieve 4-wire Kelvin measurements.Key Features
- 4-wire Kelvin Connections
- DC and 10uHz to 5MHz frequency range
- Shunts: 100Ω, 10kΩ, 1MΩ
- Signal level: ±10V peak max
Applications
- Passive component analysis and characterization
- Material Analysis (corrosion, surface finish analysis etc.)
- Electrochemical impedance analysis
- Biomedical Applications
- Cable impedance measurements
