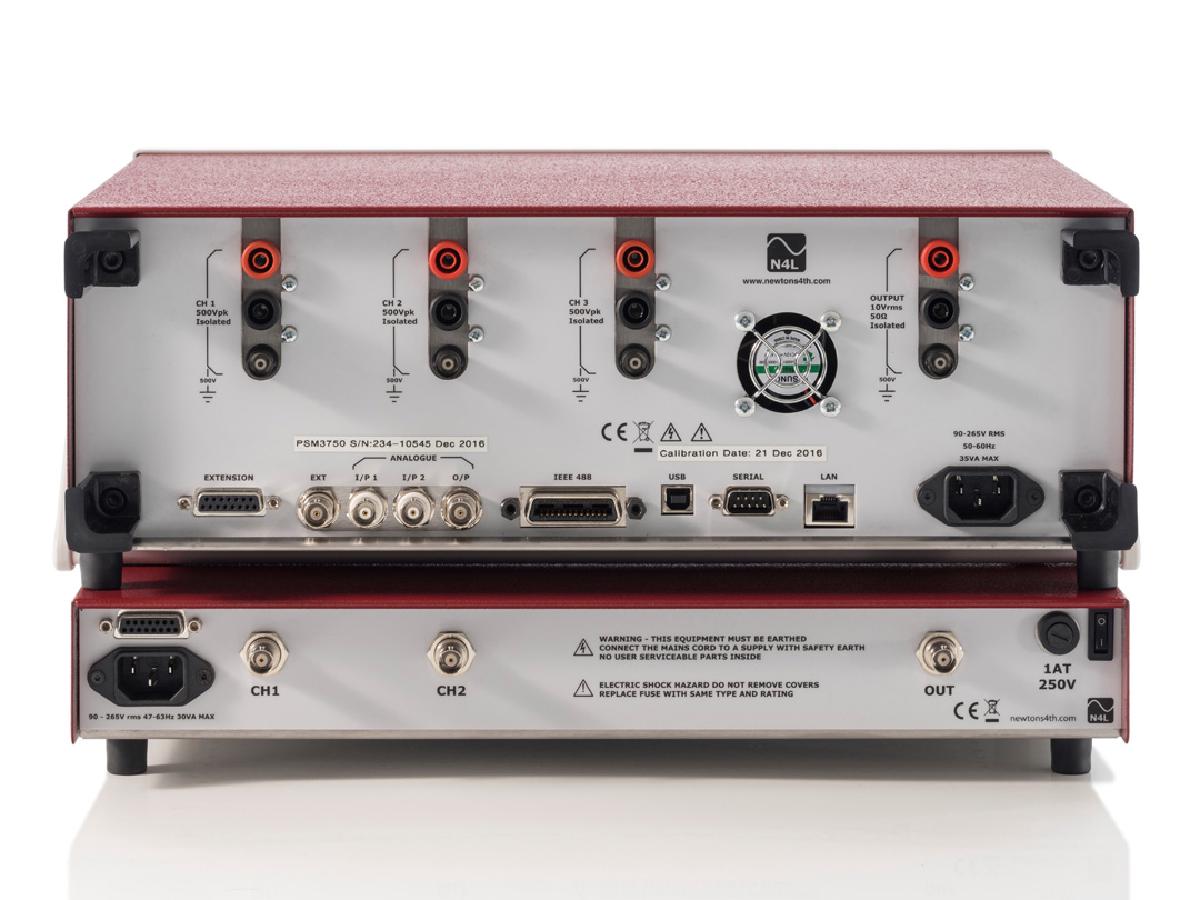

IAI2
Impedance Analysis Interface for the PSM3750
The IAI2 is an optional measurement interface for use in conjunction with the PSM3750 Frequency Response Analyzer, to form a high accuracy Impedance Analyzer. The IAI provides all of the functionality offered by the LCR Active Head but with a wider frequency and impedance measurement range and superior nominal accuracy. This is achieved by a more sophisticated design that includes an additional internal shunt range, a current amplifier to increase low impedance signal levels and calibration together with the PSM3750 with which it will be used.Key Features
- DC and 10uHz to 50MHz Frequency range
- 5Ω, 50Ω, 5kΩ, 500kΩ Auto ranging shunts
- ±10V peak generator
- 4-wire power and sense Kelvin connections
- Simple conversion to 2-wire connection
Applications
- Passive component analysis and characterization
- Material Analysis (corrosion, surface finish analysis etc.)
- Electrochemical impedance analysis
- Biomedical Applications
- Cable impedance measurements
