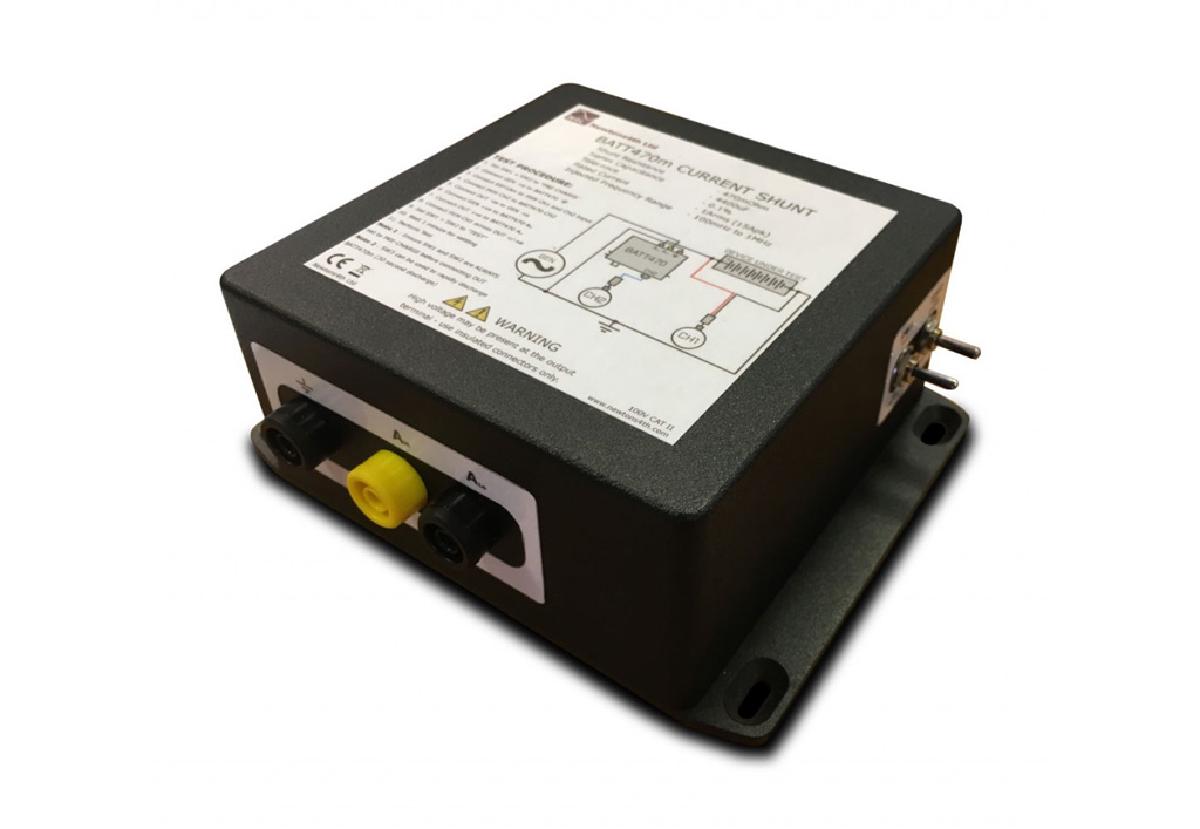

BATT470m
Battery Impedance Spectroscopy interface for the PSM3750
The BATT470m is an accessory for the PSM3750 Frequency Response Analyzer, that provides DC voltage hold off and high pass filtering necessary to inject a disturbance signal, from which AC impedance spectroscopy of a live battery becomes possible. PSM3750 impedance graph modes include the option to present results in a Nyquist plot format and PSMComm PC software allows full control, data capture and presentation, including equivalent circuit simulation.Key Features
- 10mHz to 1MHz Frequency Range
- Up to 200Vdc Hold Off
- 1mΩ to 100kΩ Impedance measurement range
- 0.1° per kHz phase error
- Interface and connection cables included
- PSMComm PC software available to all PSM3750 users
Applications
- Battery IES (Electrochemical Impedance Spectroscopy)
