Impedance Range
Learn about the range

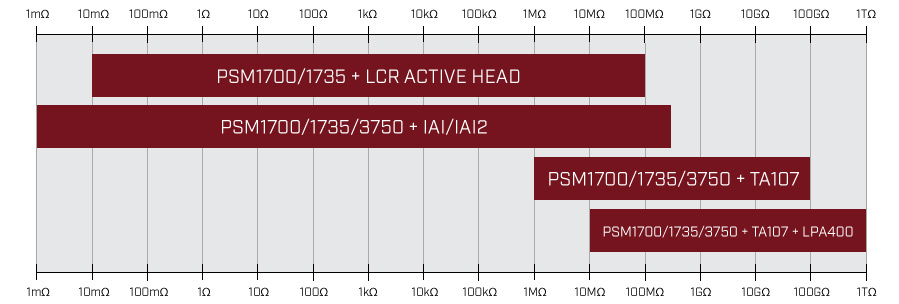

Impedance Measurement Range
Key Feature Comparison

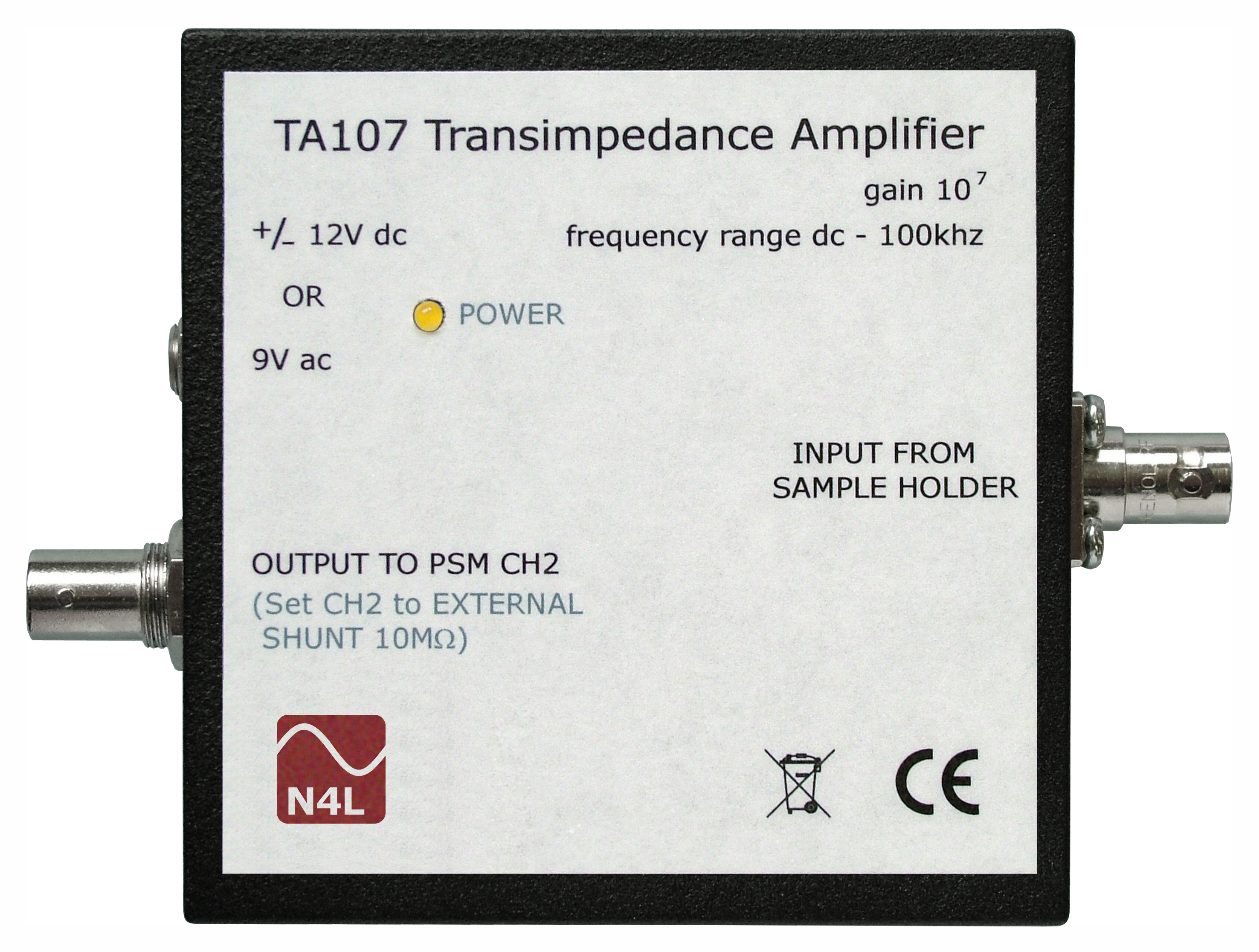

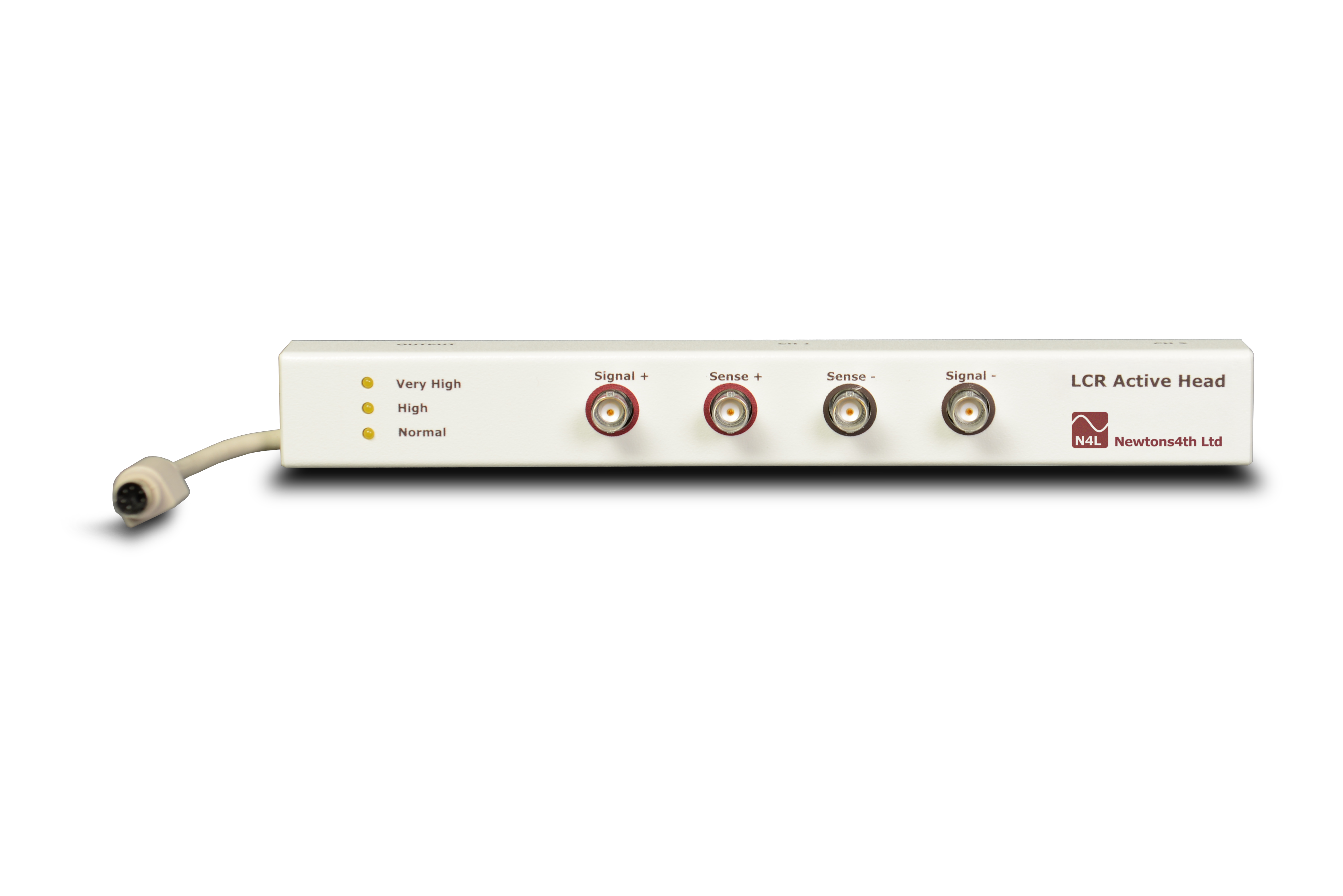

| LCR Active Head | Impedance Analysis Interface (IAI) | Impedance Analysis Interface 2 (IAI2) | TA107 Transimpedance Amplifier |
|---|---|---|---|
| 0.2% Basic Accuracy | 0.1% Basic Accuracy | 0.1% Basic Accuracy | 0.01dB Basic Accuracy |
| 0.05° Phase Accuracy | 0.05° Phase Accuracy | 0.05° Phase Accuracy | 0.05° Phase Accuracy |
| 0uHz ~ 5MHz | 10uHz ~ 35MHz (PSM1700 - 1MHz) | 10uHz ~ 50MHz | 10uHz ~ 100kHz |
Reason to choose a N4L Impedance Analyzer
Wide frequency range
Wide impedance range
High phase accuracy
High performance to cost ratio
Excellent Impedance Accuracy
Flexible features
Ability to control remotely

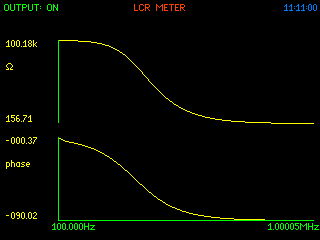

Full graphical display
Highly selective DFT analysis
