SFRA45

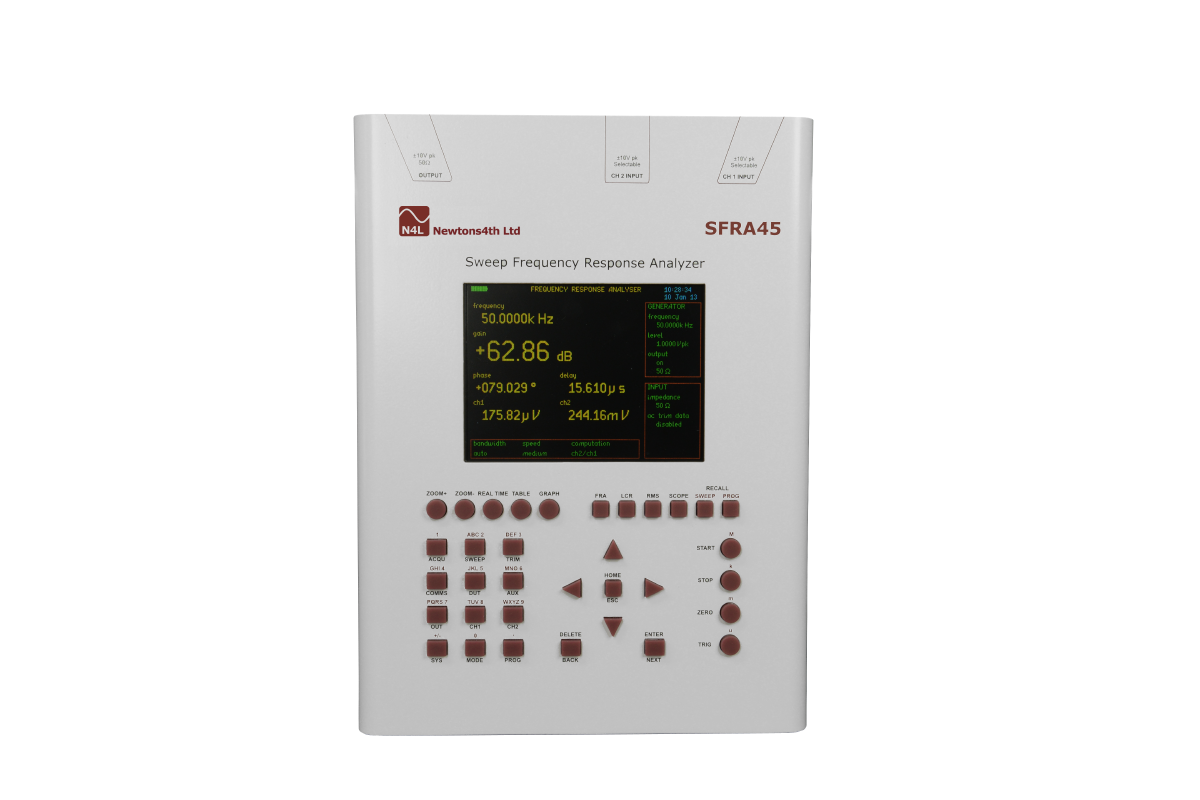

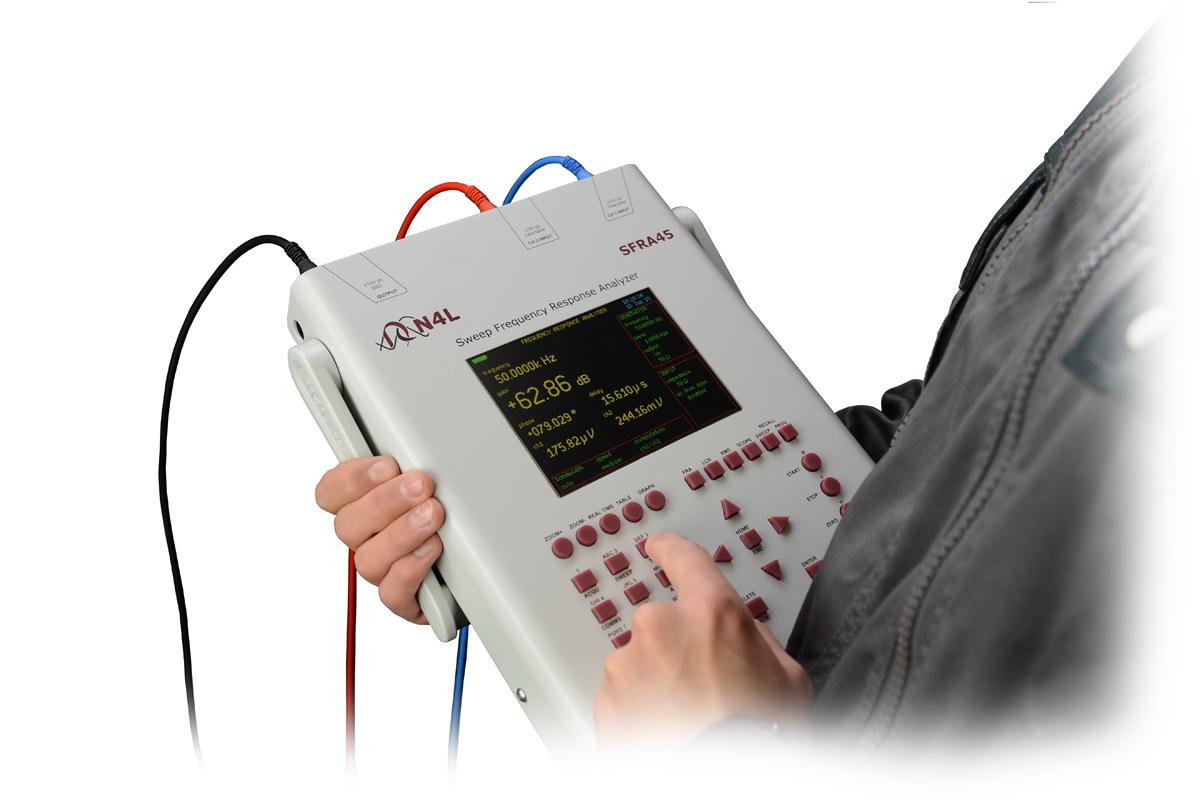

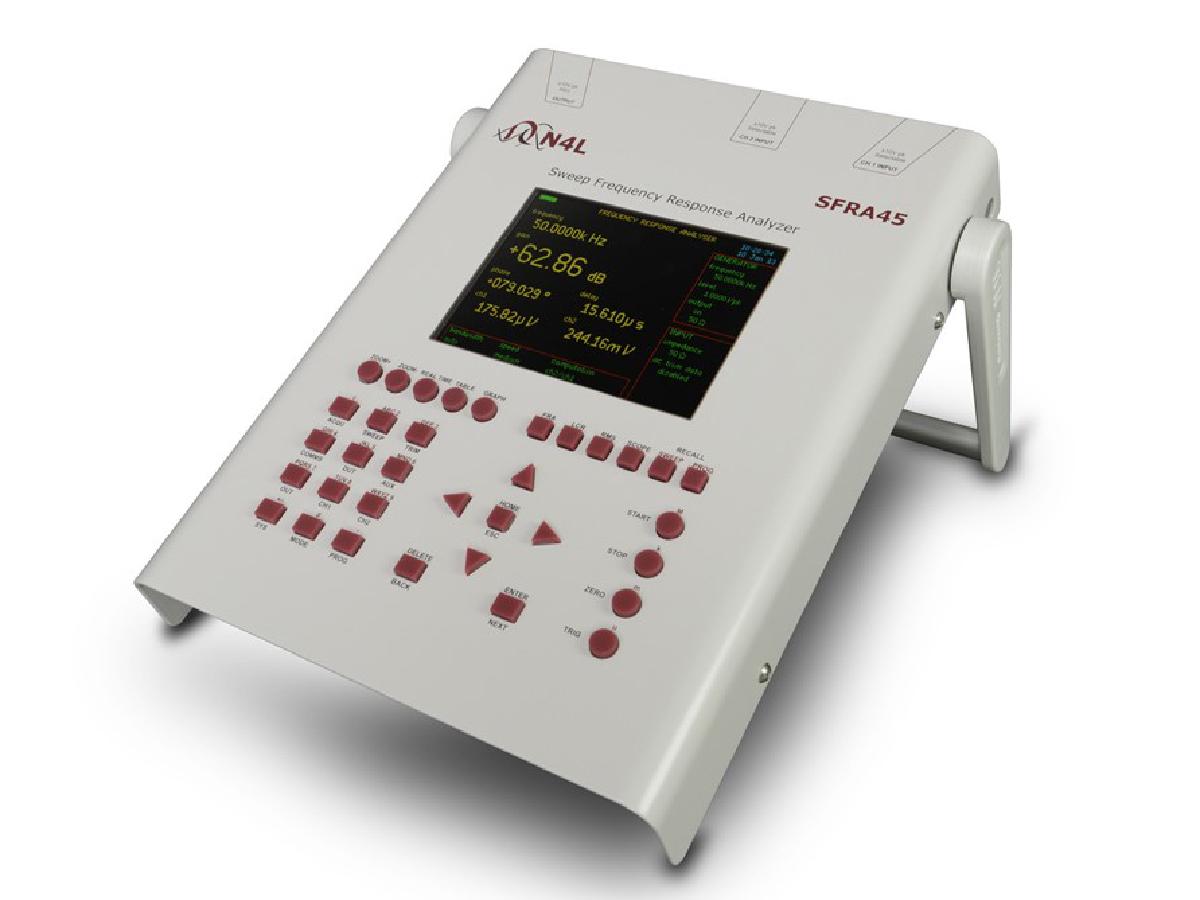

Field portable Sweep Frequency Response Analyzer

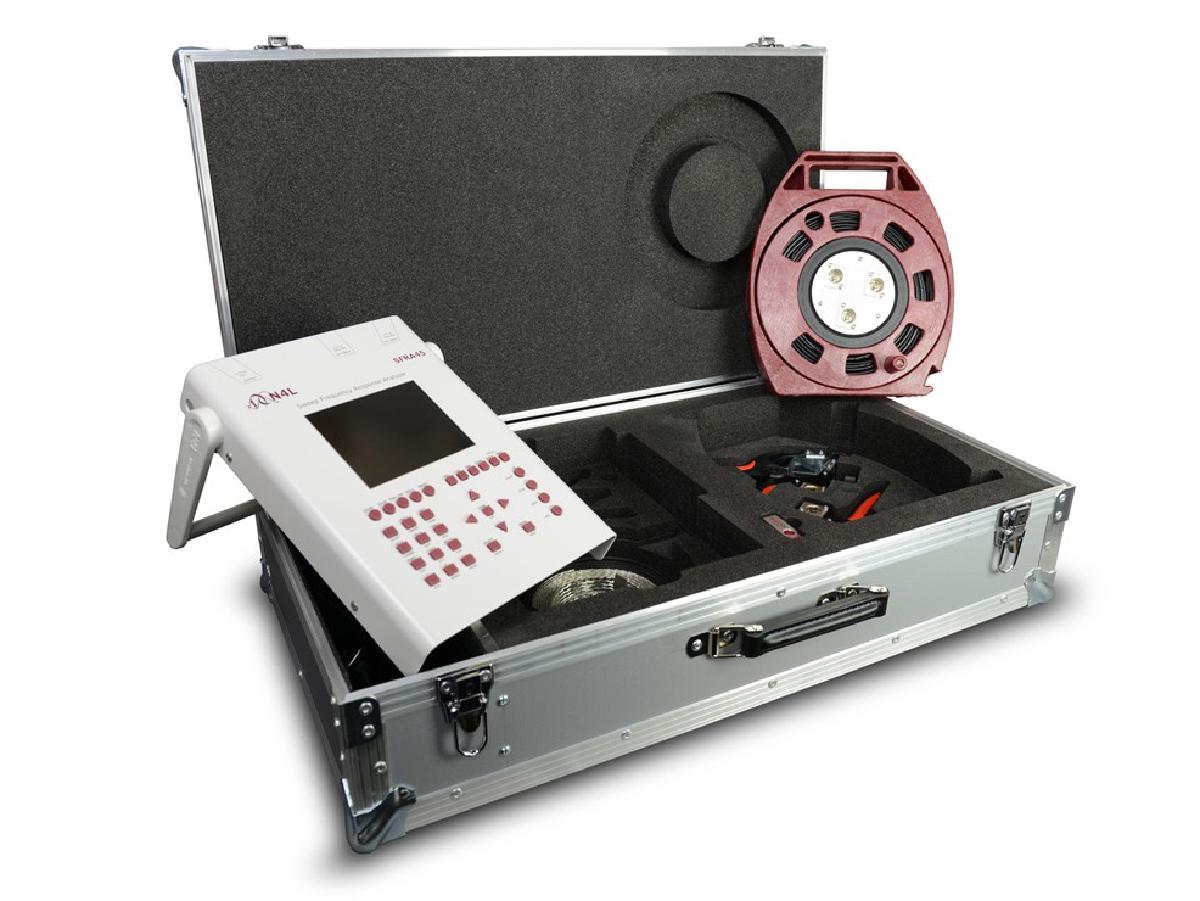

The SFRA45 is a field portable ‘Sweep Frequency Response Analyzer’ with a bandwidth of 5Hz to 45MHz. Measurement techniques and data formats are fully compliant with IEC60076 Power Transformer testing Part 18 – frequency response requirements. Featuring a high contrast colour LCD screen, DC input power and internal rechargeable battery operation, this tablet style instrument can be used with or without PC Software. Reliable connection to a device under test is assured with a cable reel design unique to N4L and custom connection clamps. Dedicated SFRAComm PC software provides presentation of sweeps recorded live or recalled from the SFRA45 non-volatile memory. The software also includes a database for results storage and fingerprint plot comparison with previous transformer sweeps, plus an automatic health diagnoses test using DLT911 algorithms.Key Features
- Frequency range 5Hz to 45MHz
- Gain accuracy 0.02dB
- Phase accuracy 0.05 degree
- LCR measurement & Scope functions
- PC software with database
- Fingerprint health check to DLT911
Applications
- Sweep frequency Response Analyzer testing
- Design, test and predictive maintenance of power transformers, motors and inductors
