PSM1700
DC and 10μHz to 1MHz Frequency Response Analyzer

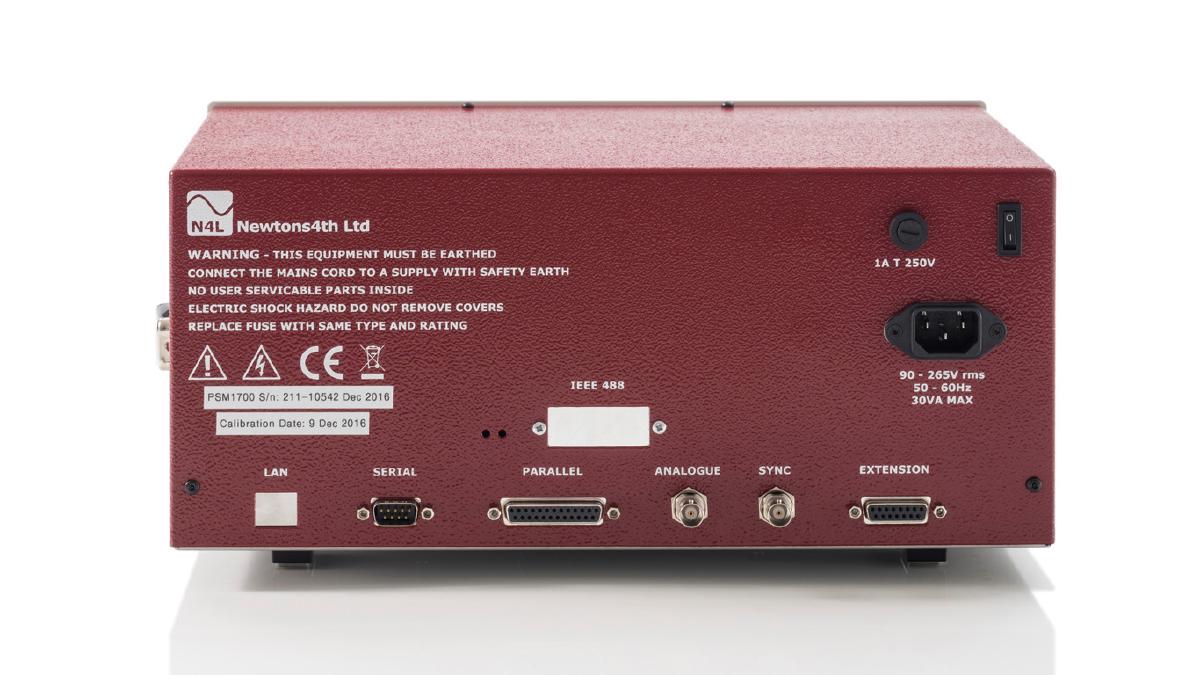

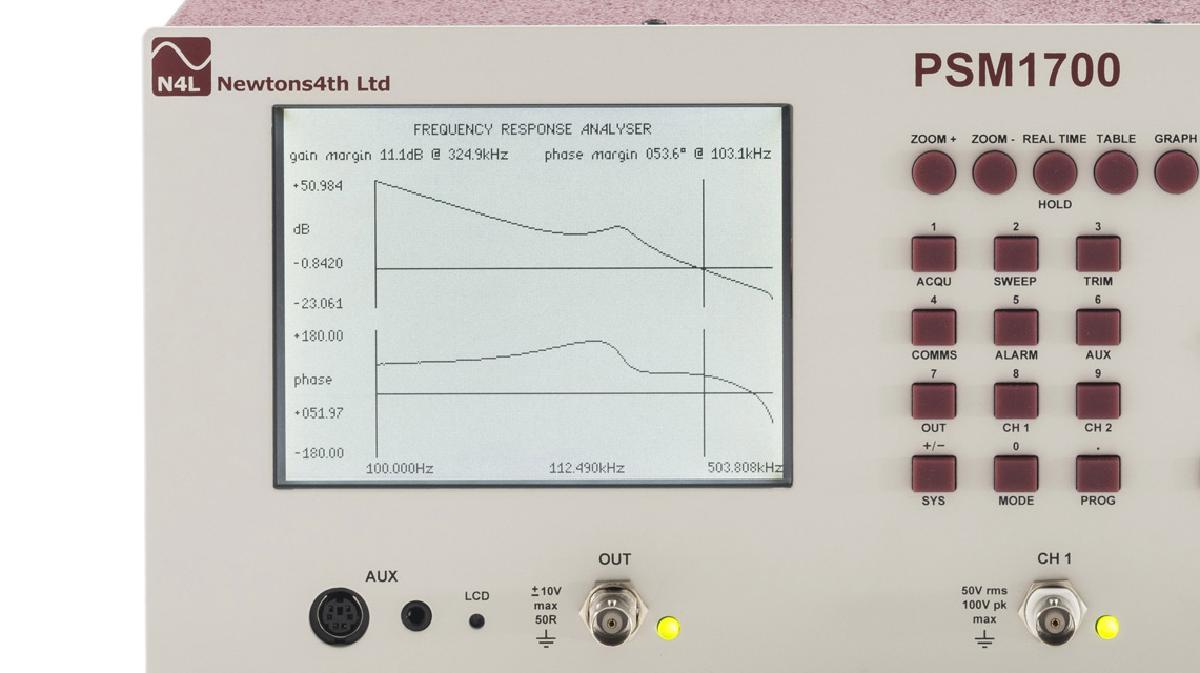

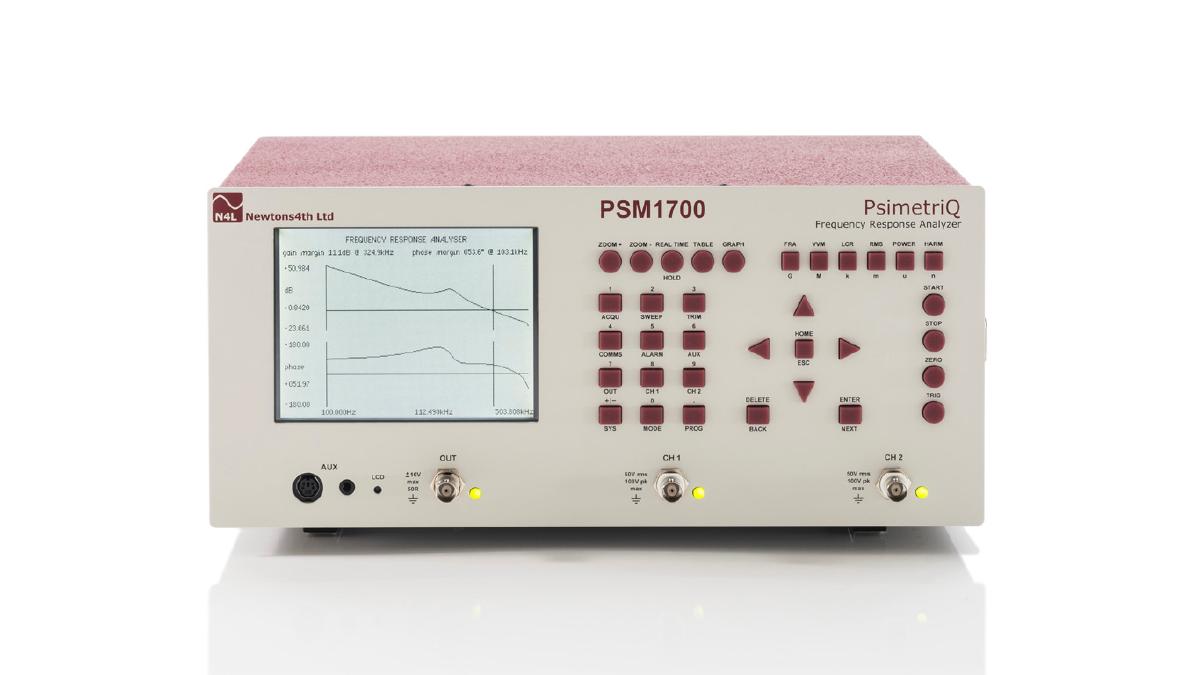

The PSM1700 is a high speed DFT (discrete fourier transform) Frequency Response Analyzer for R&D, test and production environments. Specifically designed for gain/phase analysis in real world noisy applications, including power supply loop stability analysis, amplifier design and frequency response analysis of filters over a wide frequency range. With an intuitive user interface and an LED backlit graphic display showing real time measured values, tables or graphs, the PSM1700 is a standalone bench instrument. RS232 or optional LAN interfaces give PC control and data capture using our full function PSMComm program, or integration into an automated test environment with customer software. When combined with an LCR Active Head or IAI (Impedance Analysis Interface), the PSM also becomes a 10uHz to 1MHz Impedance Analyzer/ LCR meter. The PSM1700, a versatile and cost-effective addition to any design engineers test bench.Key Features
- DC and 10uHz to 1MHz

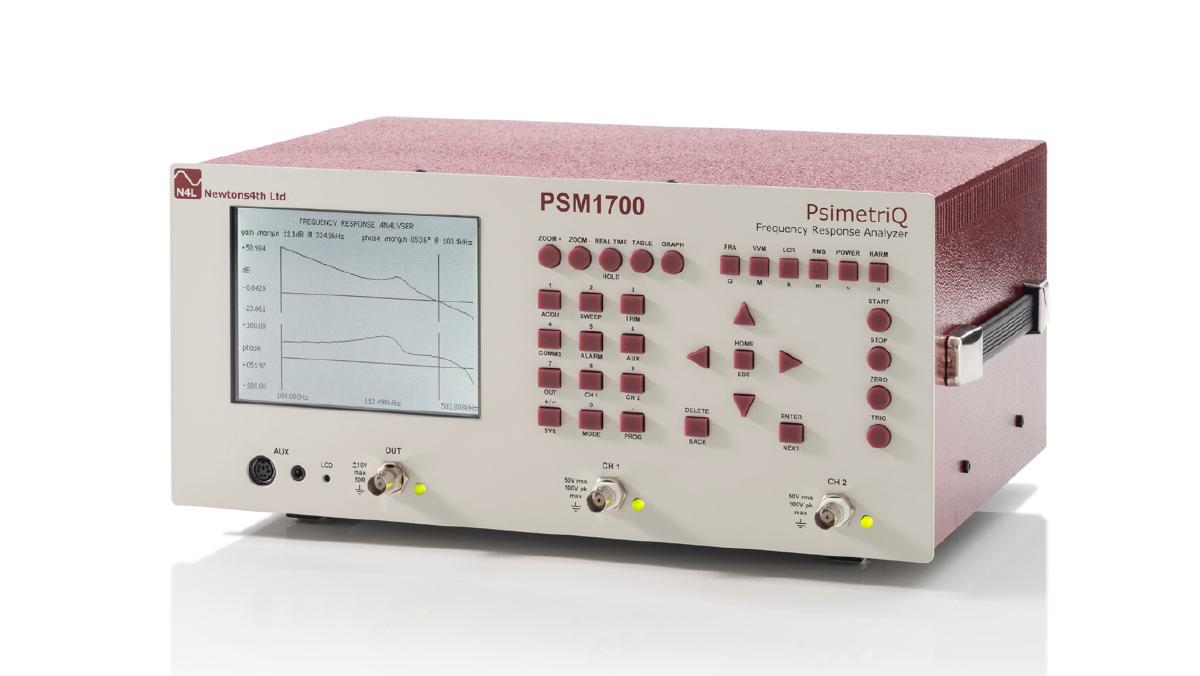

- 2x Single ended floating Inputs
- 10mV to 100Vpk input ranges
- 0.02° Phase accuracy
- Ground referenced generator
Applications
- Control Loop Analysis
- Filter Design
- LVDT Testing
- Amplifier Frequency Response
- Power Supply Rejection Ratio (PSRR)
- Component Phase Response
