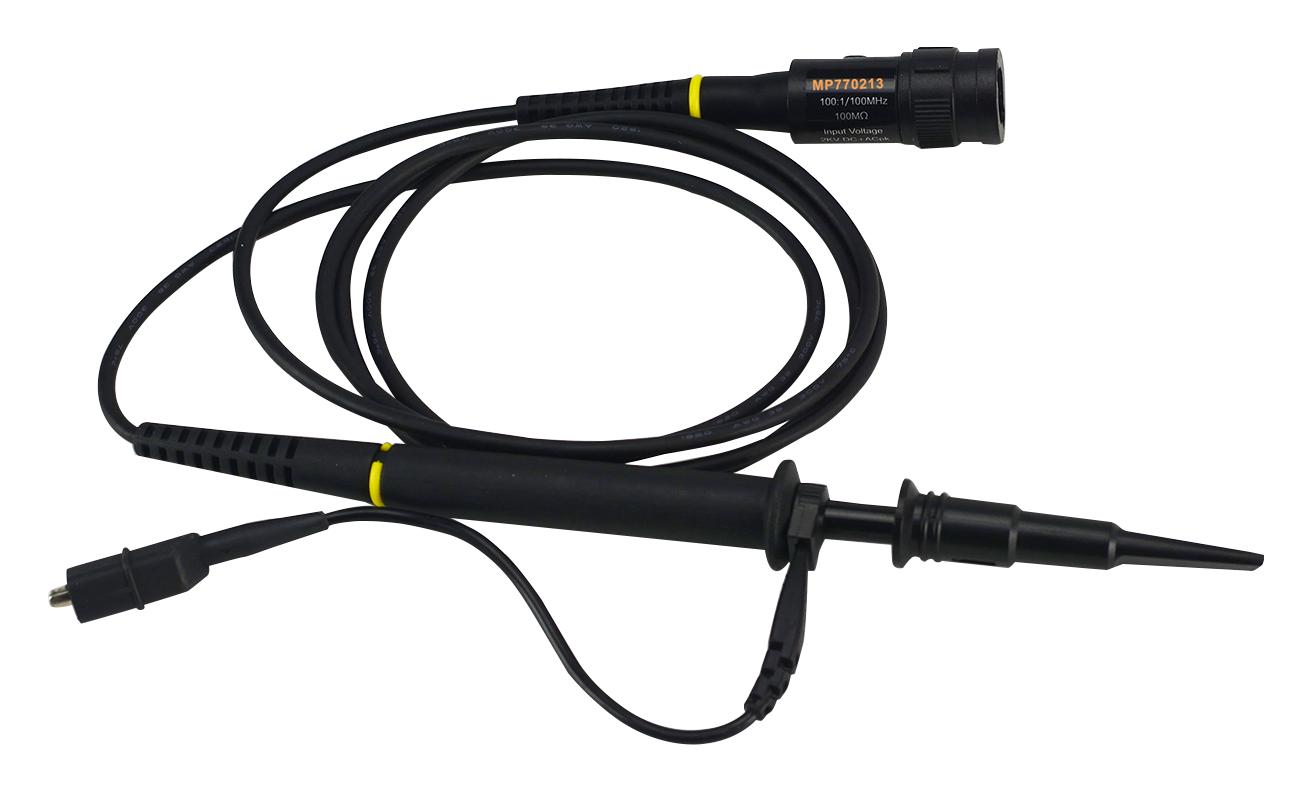

MP770213

For applications where connectivity with a scope style voltage probe is desirable, the MP770213 can be used directly with PPA External BNC inputs for voltages up to 200V DC/ACpk, or when combined with our ATT10 , 2kV DC/ACpk.

Given the greater sensitivity of PPA external voltage inputs to that of most power analyzer voltage inputs, low voltage measurements with an attenuating probe are considerably more sensitive than that of conventional power analyzers.

Since both voltage and current inputs of a PPA series analyzer include an external BNC voltage input, it becomes possible to simultaneously measure up to 6 high voltage inputs on a three phase PPA analyzer, or 12 high voltage inputs on a PPA3560.
