AC-DC Current Clamps
AC-DC Current Clamps up to 5kA, 5kHz

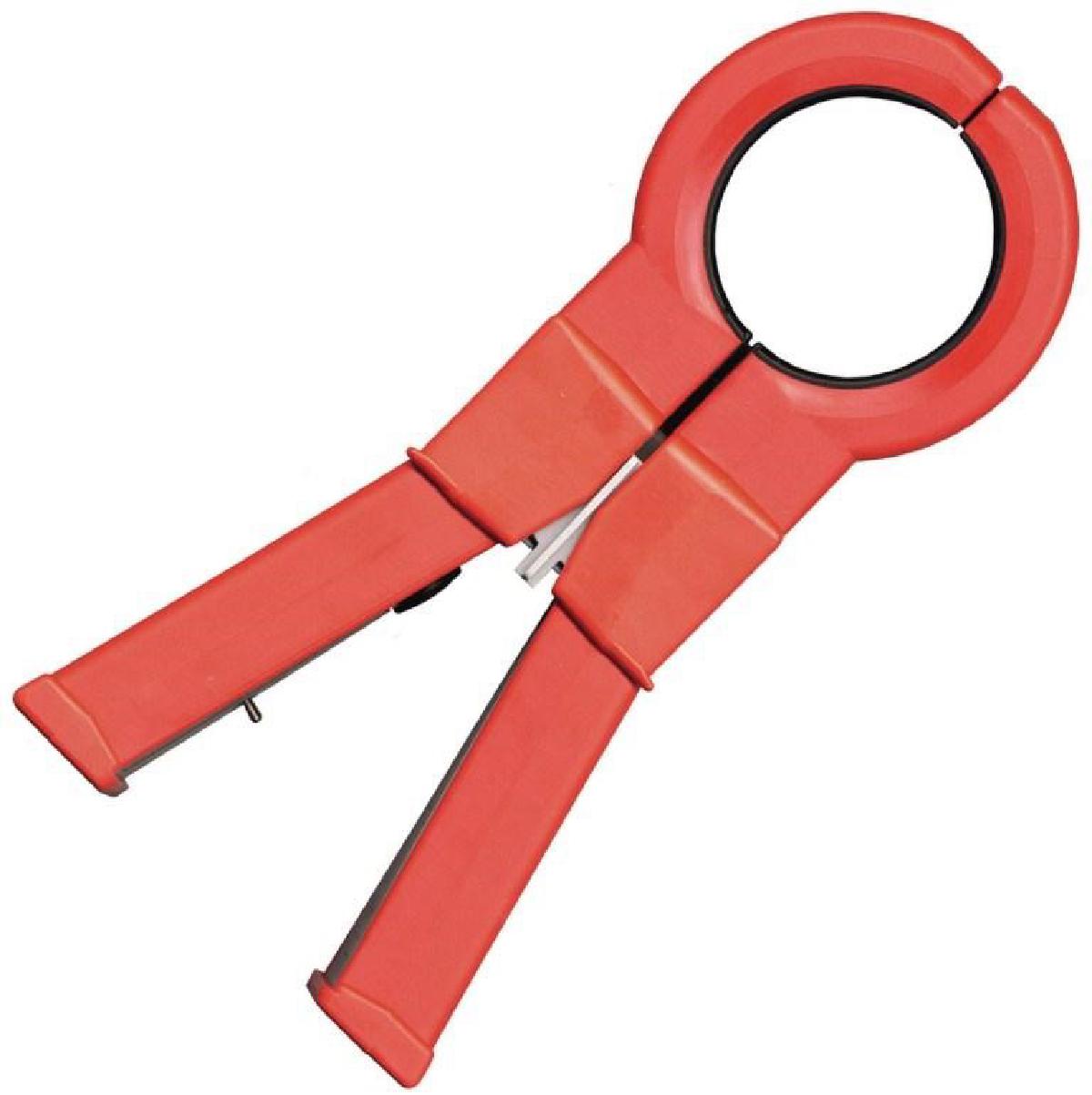

Our AC+DC Current Clamp range provide current measurement up to 5,000A (P50-3C) with an upper bandwidth of 5kHz (SC3C), these current clamps offer a convenient method of measurement for applications where the DC component of a signal is of particular interest. For example, these clamps are ideally suited to measurement of the DC bus in an inverter drive.More information
VariantsPart No Model Current Rating Datasheet RFQ 509-044 SC-2C-100 1 → 100A SC 2C 100A - 1V 509-021 SC-3C-1000 1 → 1,000A SC 3C 1000A - 1V 509-022 P20-3C-2000 40 → 1,000/2,000A P20 3C 2000A - 2V 509-023 P40-3C-4000 40 → 2,000/4,000A P40 3C 4000A – 2V 509-024 P50-3C-5000 50 → 2,000/5,000A P50 3C 5000A - 2V
Our SiteProductsContacts and Distributors
All content & data © Newtons4th Ltd 2010-2026.
| Part No | Model | Current Rating | Datasheet | RFQ |
|---|---|---|---|---|
| 509-044 | SC-2C-100 | 1 → 100A | SC 2C 100A - 1V | |
| 509-021 | SC-3C-1000 | 1 → 1,000A | SC 3C 1000A - 1V | |
| 509-022 | P20-3C-2000 | 40 → 1,000/2,000A | P20 3C 2000A - 2V | |
| 509-023 | P40-3C-4000 | 40 → 2,000/4,000A | P40 3C 4000A – 2V | |
| 509-024 | P50-3C-5000 | 50 → 2,000/5,000A | P50 3C 5000A - 2V |
