AC Current Clamps

AC only Current Clamps up to 3kA, 15kHz

Our AC Current Clamp range provide current measurement up to 3,000A (P32-UE) with an upper bandwidth of 15kHz (SMUB), these current clamps offer an accurate measurement of an AC signal over a wide bandwidth. Typical applications include PWM Invert Driver output power measurement, transformer loss testing and a range of other AC applications. The wideband response of these current clamps is very flat well beyond the stated frequency range, these AC current clamps offer an ideal solution where cost and convenience must be accompanied with sufficient accuracy.

More information

Variants

Part No	Model	Current Rating	Datasheet
509-013	M3-UB-50	100mA → 50A	M3 UB 50 – 1V
509-014	M3-U-100	1 → 100A	M3 U 100 – 1V
509-015	S-UE-200	1 → 200A	S UE 200 – 1V
509-016	S-UE-250	1 → 250/500/1000A	S UE 250 500 1000
509-017	US-UE-1000	1 → 1,000A	US UE 1000 - 1V
509-018	SM-UE-1000	0.5 → 1,000A	SM UE 1000 - 1V
509-030	SM-UB-1000	0.5 → 1,000A	SM UB 1000 - 1V

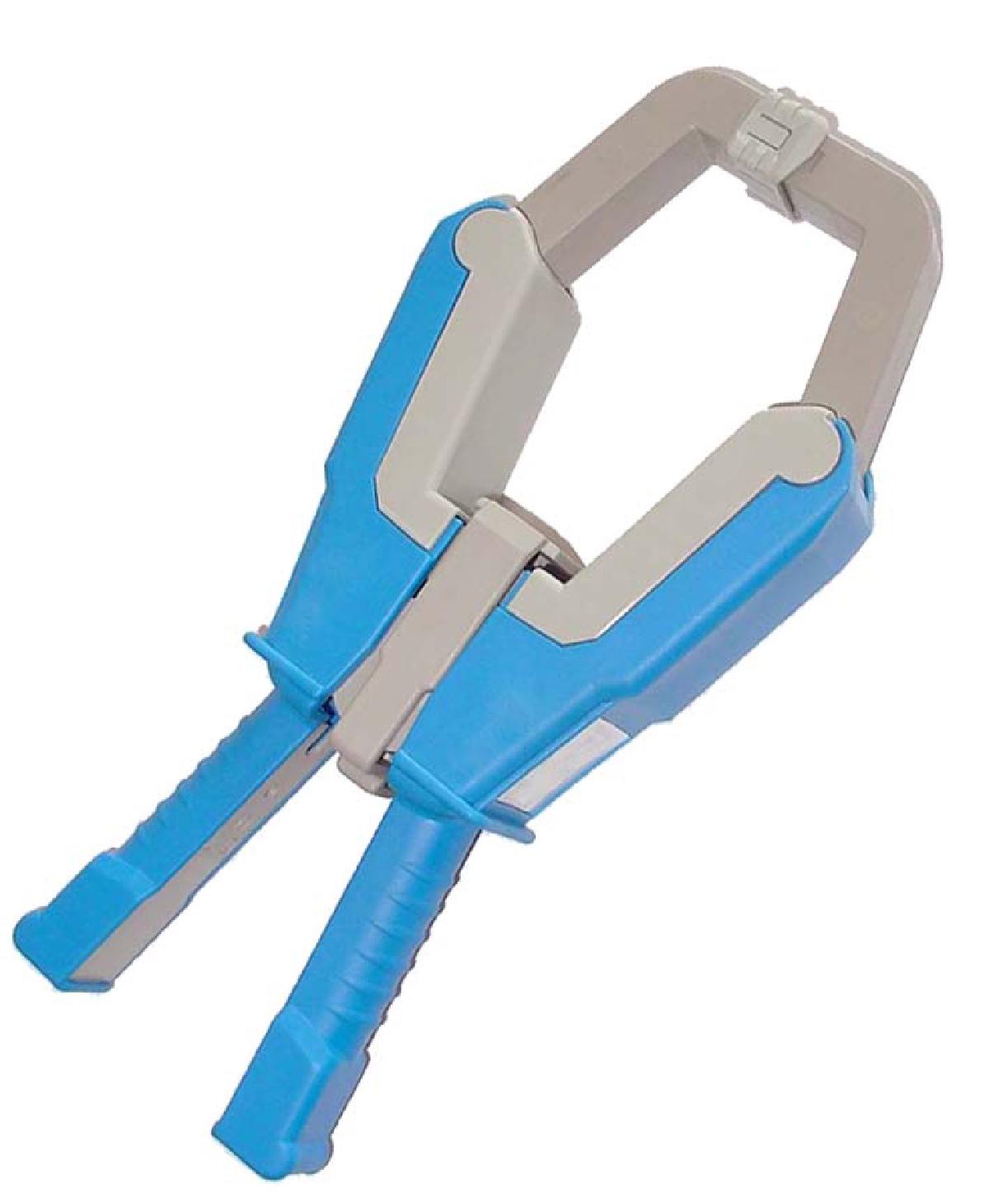

509-019	P32-UE-1000	5 → 1,000A	P32 UE 1000 - 1V
509-020	P32-UE-3000	5 → 3,000A	P32 UE 3000 - 1V
