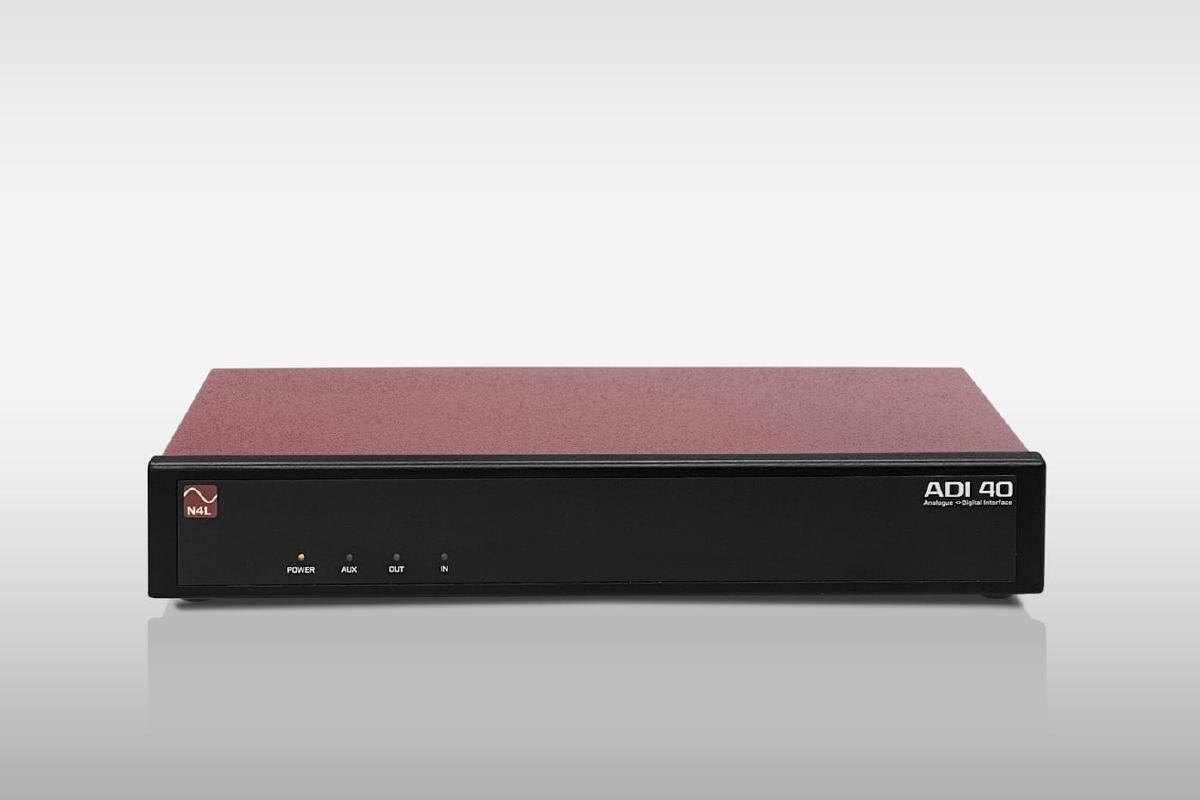

ADI40

Compatible with PPA3500, 4500 and 5500 series power analyzers, the ADI40 enables users to monitor multiple analogue sensors or provide analogue output signals associated with power electronic applications.

With 20 analogue to digital channels streaming digitally with the power analyzer, and 20 digital to analogue conversion channels for external analogue recording, the PPA plus ADI combination provides a central measurement system, combining electrical power measurement and directly associated analogue parameters such as temperature, pressure, flow or mechanical force.

The 20 inputs can include 4, 8, 12 or 16 type J or k thermocouple inputs, and the 20 outputs can be mapped to any PPA measured parameter. All data is available to a PC via Multilog commands with the PPA, using customer software or PPALoG PC software available without charge to all PPA users.
